Product Description

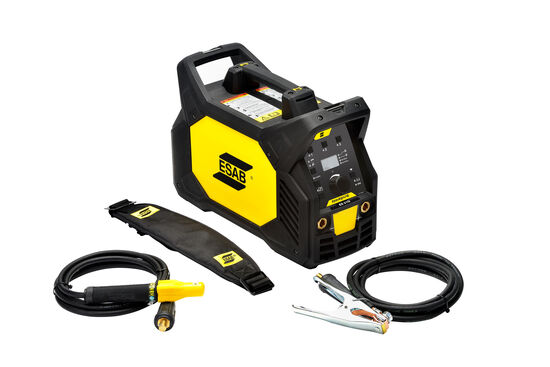

ESAB Renegade ES 210i MMA Welder (0447700881)
Renegade ES is a professional single-phase, MMA and Live TIG welding machine with the most resistant IP23 housing designed for use in demanding environments.
Equipped with a high-quality carry strap with multiple lift points, Renegade ES is ready to move with you when portability is required.
Additionally, a built-in active PFC circuit provides an uninterrupted power supply, even with long extension cables (up to 100 m).
Renegade ES have been designed to weld with any type of electrode in superior quality, including 6010 cellulosic.
User have a direct access to parameters and memory buttons, which makes machine very easy to work with.
Price Match Promise:
In the unlikely event that you have found this product cheaper elsewhere, please call AOne Tools on 01484 727286 to discuss price matching.
NB: Please have relevant product and supplier information to hand.
Delivery includes:
Power Source
3M Work Lead
Shoulder Strap
3M Electrode Holder
Specifications | |
---|---|
Input Voltage | 115/230 VAC ±15 %, 1 Φ, 50/60 Hz |
LiveTIG Welding Output | 140 A15.6 V (115 VAC) @ 25 % Duty Cycle 90 A13.6 V (115 VAC) @ 60 % Duty Cycle 80 A12.8 V (115 VAC) @ 100 % Duty Cycle 210 A18.4 V (230 VAC) @ 25 % Duty Cycle 135 A15.4 V (230 VAC) @ 60 % Duty Cycle 105 A14.2 V (230 VAC) @ 100 % Duty Cycle |
Stick (MMA) Welding Output | 110 A24.4 V (115 VAC) @ 25 % Duty Cycle 71 A22.8 V (115 VAC) @ 60 % Duty Cycle 55 A22.2 V (115 VAC) @ 100 % Duty Cycle 210 A28.4 V (230 VAC) @ 25 % Duty Cycle 135 A25.4 V (230 VAC) @ 60 % Duty Cycle 105 A24.2 V (230 VAC) @ 100 % Duty Cycle |
Open Circuit Voltage | 78 VDC |
Power Factor at Maximum Current | 0.99 |
Fuse Slow | 16 A |
Energy Save Mode | <30 W |
Supply Plug | CEE 16 A |
Operating Temp | -10 to +40 °C |
rated kVA | 6 kVA 3.3 kVA |
Enclosure Class | IP23 |
Dimensions, L x W x H | 460 x 200 x 320 mm |
Weight | 9.9 kg |
Setting Range | 10.4-15.6 V (10-140 A) 20.6-28.4 V (15-180 A) 10.4-18.4 V (10-210 A) 20.6-24.4 V (15-110 A) |
