ESAB Renegade Volt™ ES 200i MMA Welder

SKU: 0447800883 Category:
Brand:ESAB
£4,126.08 (£3,438.40 ex VAT)
x

Product Description

ESAB Renegade Volt™ ES 200i MMA Welder (0447800883)

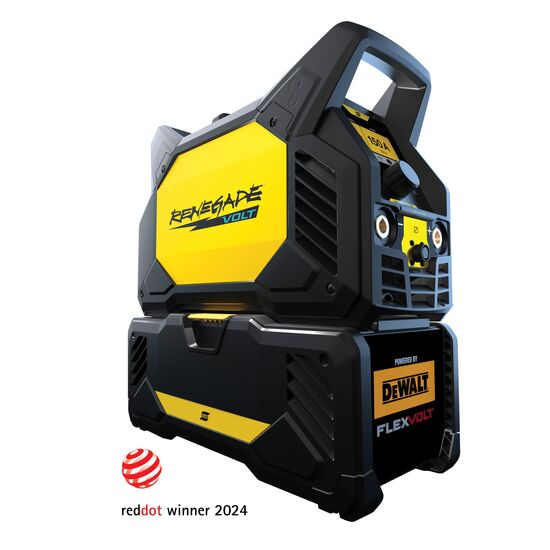

ESAB Renegade VOLT™ ES 200i is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode.

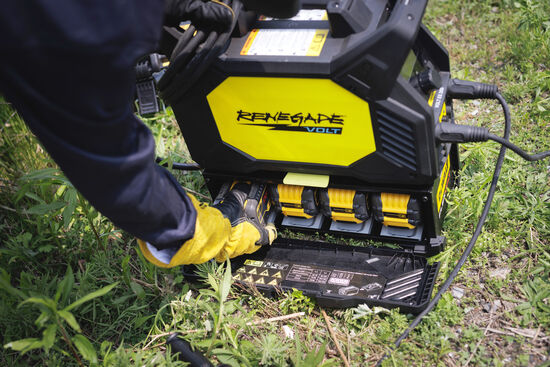

This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.*

Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power.

In AMP+ Hybrid Mode, Renegade VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input.

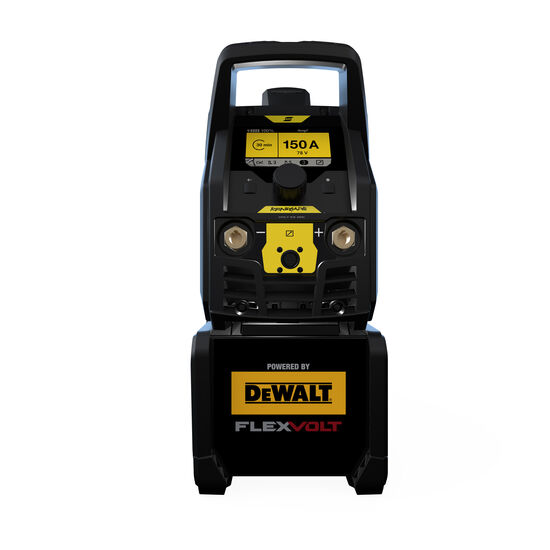

Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator.

This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference.

*based on standard operating conditions

Price Match Promise:
In the unlikely event that you have found this product cheaper elsewhere, please call AOne Tools on 01484 727286 to discuss price matching.
NB: Please have relevant product and supplier information to hand.

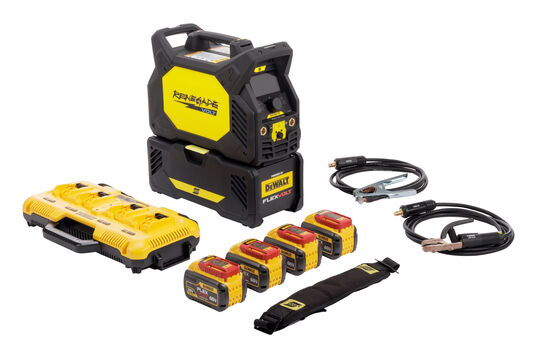

Delivery includes:
Power Source
DeWalt Flexvolt 18v/54v 12ah Batteries x 4
DeWalt Flexvolt Four-Port Fast Charger
3M Electrode Holder
3M OKC 50 Return Cable With Clamp
OKC 50 Shoulder Strap
Detachable Battery Box

→ Instruction Manual Download
⇒ Factsheet Download

Specifications
Input Voltage 120/230 VAC 15 %, 1 Φ, 50/60 Hz
GTAW (AC) Welding Output 140 A15.6 V (120 V) @ 25 % Duty Cycle
90 A13.6 V (120 V) @ 60 % Duty Cycle
70 A12.8 V (120 V) @ 100 % Duty Cycle
200 A18.0 V (230 V) @ 25 % Duty Cycle
129 A15.2 V (230 V) @ 60 % Duty Cycle
100 A14.0 V (230 V) @ 100 % Duty Cycle
GTAW (AMP+) Welding Output 180 A17.2 V (120 V) @ 25 % Duty Cycle
130 A15.2 V (120 V) @ 60 % Duty Cycle
100 A14.0 V (120 V) @ 100 % Duty Cycle
200 A18.0 V (230 V) @ 25 % Duty Cycle
129 A15.2 V (230 V) @ 60 % Duty Cycle
100 A14.0 V (230 V) @ 100 % Duty Cycle
GTAW (DC) Welding Output 150 A16.0 V (80 V) @ 18 % Duty Cycle
115 A14.6 V (80 V) @ 25 % Duty Cycle
90 A13.6 V (80 V) @ 60 % Duty Cycle
70 A12.8 V (80 V) @ 100 % Duty Cycle
SMAW (AC) Welding Output 110 A24.4 V (120 V) @ 25 % Duty Cycle
70 A22.8 V (120 V) @ 60 % Duty Cycle
55 A22.2 V (120 V) @ 100 % Duty Cycle
200 A28.0 V (230 V) @ 25 % Duty Cycle
129 A25.2 V (230 V) @ 60 % Duty Cycle
100 A24.0 V (230 V) @ 100 % Duty Cycle
SMAW (AMP+) Welding Output 150 A26.0 V (120 V) @ 25 % Duty Cycle
90 A23.6 V (120 V) @ 60 % Duty Cycle
70 A22.8 V (120 V) @ 100 % Duty Cycle
200 A28.0 V (230 V) @ 25 % Duty Cycle
129 A25.2 V (230 V) @ 60 % Duty Cycle
100 A24.0 V (230 V) @ 100 % Duty Cycle
SMAW (DC) Welding Output 140 A25.2 V (80 V) @ 18 % Duty Cycle
110 A24.4 V (80 V) @ 25 % Duty Cycle
80 A23.2 V (80 V) @ 60 % Duty Cycle
60 A22.4 V (80 V) @ 100 % Duty Cycle
Voltage Range 90-270 VAC
Open Circuit Voltage 80 VDC
Power Factor at Maximum Current 0.99
Efficiency at Maximum Current 80 %
Fuse Slow 16 A
Energy Save Mode <50 W
Supply Plug CEE 7/7 (type E)
Operating Temp -10 – +40 °C
rated kVA 2.7 kVA (120 V)
6.0 kVA (230 V)
Enclosure Class IP23
Certification CE; UKCA
Dimensions, L x W x H
with battery box
without battery box		 480 x 220 x 485 mm
460 x 200 x 320 mm
Weight
power source and battery box
power source, battery box, and 4 battery packs*		 19 kg
24.5 kg
Setting Range
AMP+
DC
AC
AC
AMP+
AMP+
DC
AC
AMP+
AC		 20.6-28 V (10-200 A)
20.6-25.6 V (10-140 A)
10.4-18 V (10-200 A)
20.6-28 V (10-200 A)
20.6-26 V (10-150 A)
10.4-17.2 V (10-180 A)
10.4-16 V (10-150 A)
20.6-24.4 V (10-110 A)
10.4-18 V (10-200 A)
10.4-17.2 V (10-180 A)

* Weight when using a DEWALT FLEXVOLT 18 V/54 V max 12 Ah Battery, weight may vary when using other FLEXVOLT battery packs.

AC = Mains Mode | DC = Battery Mode | AMP+ = AMP+ Hybrid Mode
