Offering practical, reliable cleaner air solutions

Improving working conditions for welders, environments and businesses

High Vacuum System

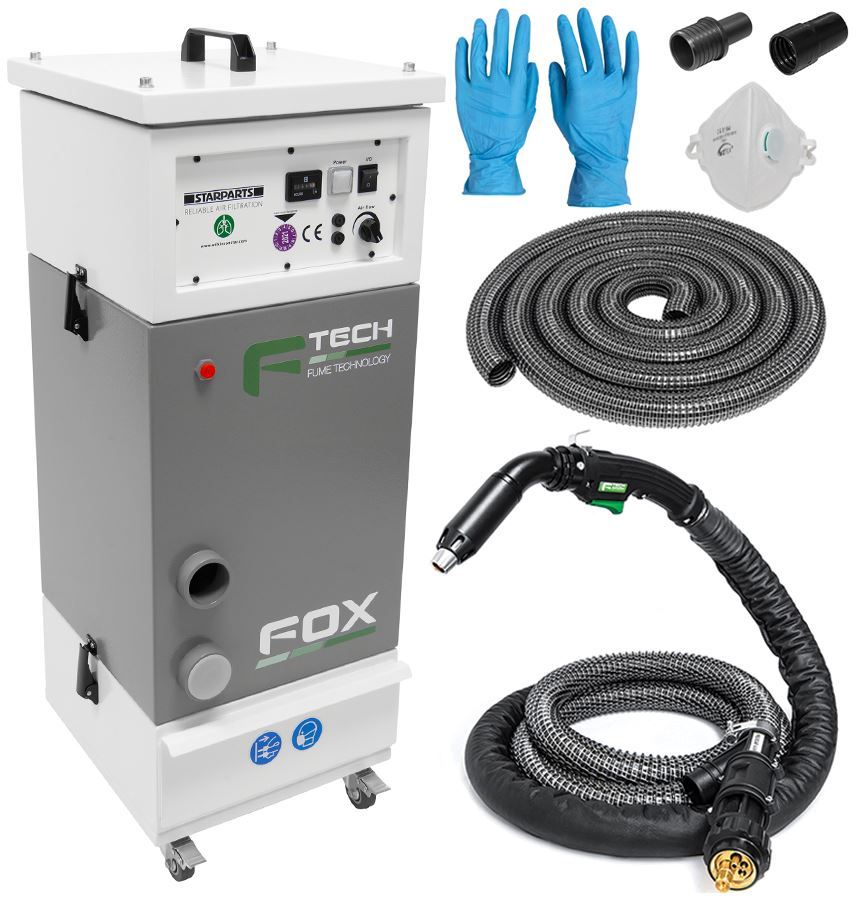

The F-Tech Fox a high vacuum dust extraction system offering a portable solution to extract dust from manual welding and grinding processes.

Compact modular design
Extremely portable
4 sturdy, swivel casters for easy manoeuvrabilty in the workplace
110v or 230v models available
Tandem motors offering pure efficency in providing a vacuum of over 20,000 Pa to extract and filter harmful welding or grinding dust
Will run 2 welding torches simultaneously
Hour meter to check running time on equipment
Fan speed control
Featuring ePTFE robust European made filters (H13 Certified) German Institute for occupational therapy
Long life robust filters – Cleaning is carried out by automatic nozzles controlled by the differntial pressure measurement within the filter housing.
Automatic cleaning for the filter cartridge and the mechanical filter layer
Dust is collected in the dust tray and a mask and gloves are provided for handling the removal of waste

Information Booklet Download

Filter Efficiency 99.99%
Motor power 2 x 0.8 kW
Rated input Voltage 110V & 230V models 50-60 Hz
Flow rate pressure 340m³/h
Noise levels <78 dB(A)
Dimensions 300 x 300 x 845mm
Weight 35 Kg
