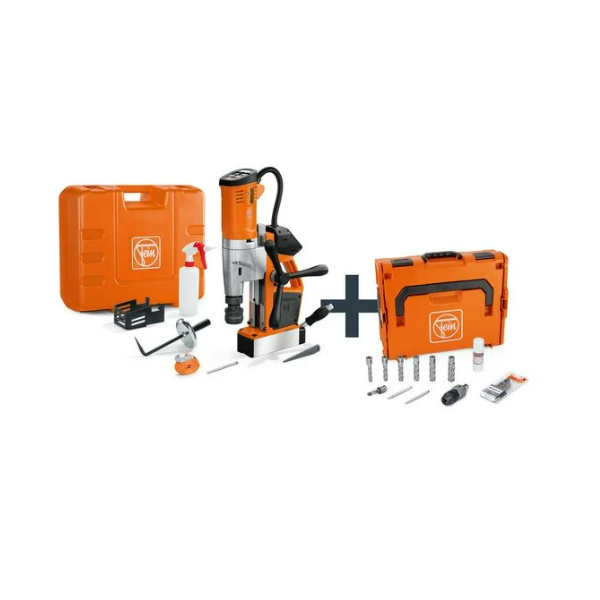

AKBU 35 PMQW AS CONSTRUCTION SITE SET 3/4 IN WELDON / HSS NOVA 50
Cordless universal magnetic core drill for up to 35 mm with user set
AKBU 35 PMQW AS, an extremely versatile cordless core drill coupled with extensive HSS core drilling accessories and HSS cobalt 5% twist drilling accessories. Perfect for steel and bridge construction.

Extremely wear-resistant and durable tool concept thanks to brushless motor as well as high material quality and workmanship. Designed for up to 60,000 holes during a 300 h usage period.

Small and light tool with increased work progress of up to 25%, offering unique productivity and battery life compared with the competition. Using 18 V 12 Ah AMPShare ProCORE batteries, up to 48 holes can be drilled per battery charge (carbide core drill bit, diameter 18 mm, S235 12 mm).

Weighing 12.2 kg, it’s the lightest cordless universal core drill in the world. Maximum flexibility for all mobile drilling work, such as core drilling, twist drilling, tapping, countersinking and reaming thanks to forward/reverse running, electronic speed setting and a 260 mm stroke range.

HSS NOVA 50 core drill bit: Extremely resistant to shock and impact, perfectly designed for tough use in steel construction and installation work. Thanks to its tough cutting edges and outstanding HSS steel with a hardness of 64 HRC, the core drill bit also delivers an impressively long service life.HSS cobalt 5% twist drill set: HSS cobalt alloy twist drills, diameter 2 / 3 / 4 / 5 / 6 / 8 mm. Particularly suitable for working with stainless and alloyed steels.

SUPRA SK quick-clamp drill chuck: metal quick-clamping drill chuck with a clamping range of 1–13 mm. Simple, rapid and tool-free clamping for maximum convenience. Automatically self-tightening clamping jaws for precisely axial drilling tool concentricity.

L-BOXX system: Keep things stowed clearly, tidily and safely. Thanks to the tray for small parts, there is room for all accessories and the L-BOXXs can also be joined together and stacked with ease.* Also available with accessories.** Outstanding performance with AMPShare ProCore 18 V 8.0 Ah / 12.0 Ah

Battery voltage 18 V
Battery compatibility Li-ion / ProCORE Li-ion**
Battery interface 18 V AMPShare
Motor brushless
Speed, full load 130 – 520 rpm
Tool Holder MT 2
Carbide core drill bit max. Ø 35 mm
HSS core drill max. Ø 35 mm
Core drill, drilling depth max. 50(75)* mm
Twist drill max. Ø 18 mm
Tapping M 14
Countersinking max. Ø 30 mm
Reaming max. Ø 18 mm
Core drill holder 3/4 in Weldon
Changing the core bit tool-free
Stroke 135 mm
Total stroke range 260 mm
Magnetic holding power 9,000 N

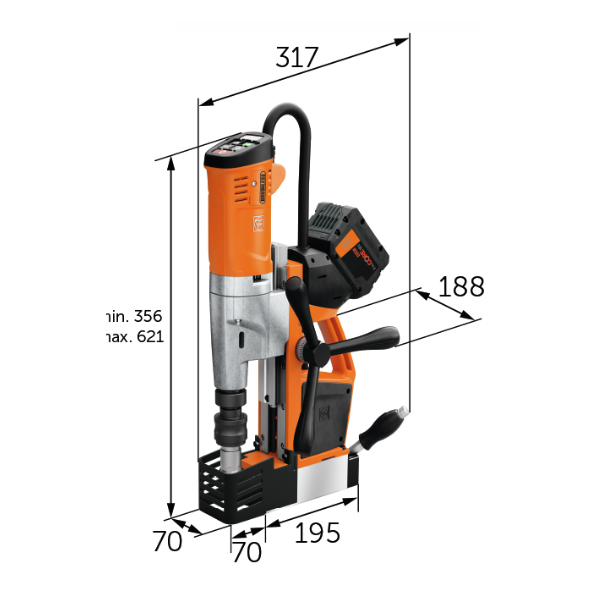

Magnetic foot dimensions {1042} x {1043} mm
Weight without storage battery 12.20 kg
