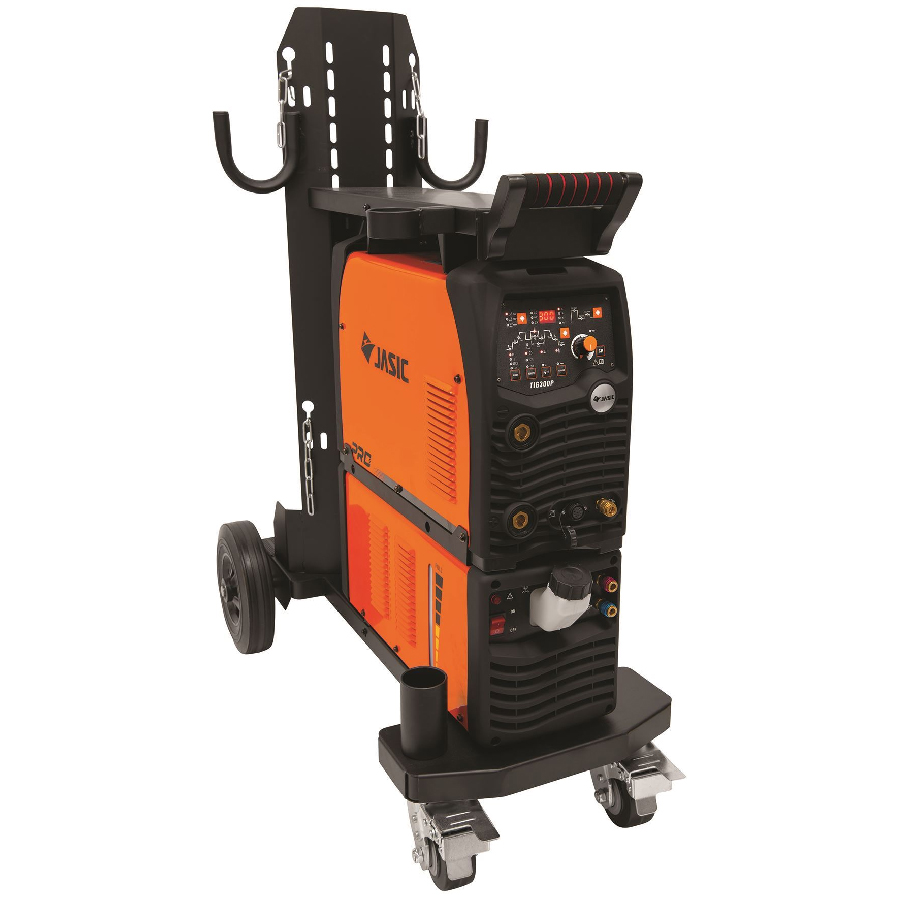

Jasic TIG 300P DC Inverter Water Cooled Package

The Jasic TIG 300 DC Pulse inverter is equipped with industrial grade components and microprocessor control for high accuracy and performance.
This technologically advanced inverter with a digital control panel allows for feature rich options and provides 8 channel automatic storage of the welding parameters.
The unit is designed to IP23S S class for use in the harshest environments. This modular design TIG welding system can be assembled with an optional trolley and water cooler where required.

TIG DC Pulse with digital control
Program memory storage
Microprocessor control of a wide range of functions
HF and lift TIG
Remote control interface
VRD function
Digital display
Intelligent fan and cooler control
Excellent welding characteristics
Protection system to enhance equipment life
S Suitable for welding in an environment with increased risk of electric shock
Water cooled option

Input Voltage AC 400V +/-15% – 50/60 Hz
Ieff (A) 9.9
Input Power (kVA) 11
Current Range (A) TIG 5 – 300 MMA 20 – 210
Duty Cycle @ 40°C TIG 300A @ 20% MMA 210A @ 50%
No-Load Voltage (V) 60 (11.8V – VRD)
Efficiency (%) 85
Protection/Insulation Class IP23S/F
Dimensions (LxWxH mm) 566 x 224 x 405
Weight (Kg) 19.4
