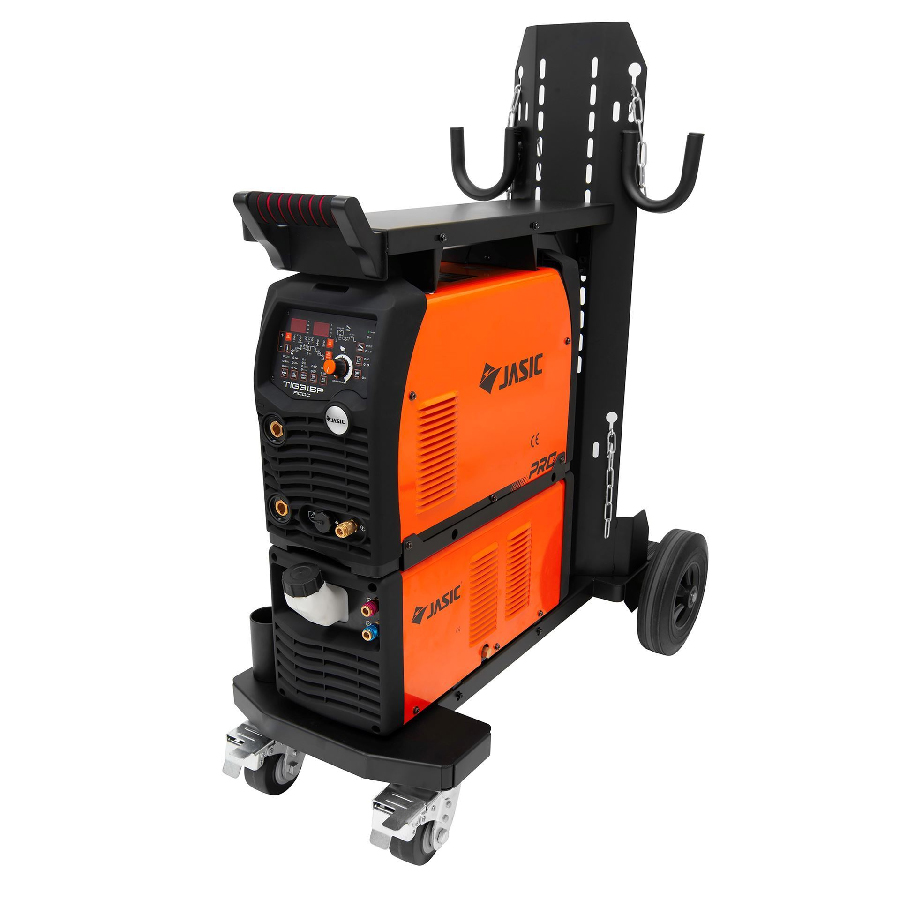

Jasic TIG 315P AC/DC Multi Wave Digital Inverter Water Cooled

Technical Data
Input Voltage AC 400V +/-15% – 50/60 Hz
Ieff (A) TIG 10 MMA 12.4
Input Power (kVA) 14
Current Range (A) TIG 10 – 315 MMA 10 – 270
Duty Cycle @ 40°C TIG 315A @ 30% MMA 270A @ 30%
No-Load Voltage (V) 73 (12.4V – VRD)
Efficiency (%) 85
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 566 x 224 x 405
Weight (Kg) 25.5

Key Features
• TIG AC/DC with digital control
• program memory storage up to 50 sets of data
• Microprocessor control of a wide range of functions
• Square, Triangular, Sine, Mixed Wave
• Multi wave options on AC
• Variable AC frequency
• Remote control interface
• VRD function
• Intelligent fan and cooler control
• Excellent welding characteristics
