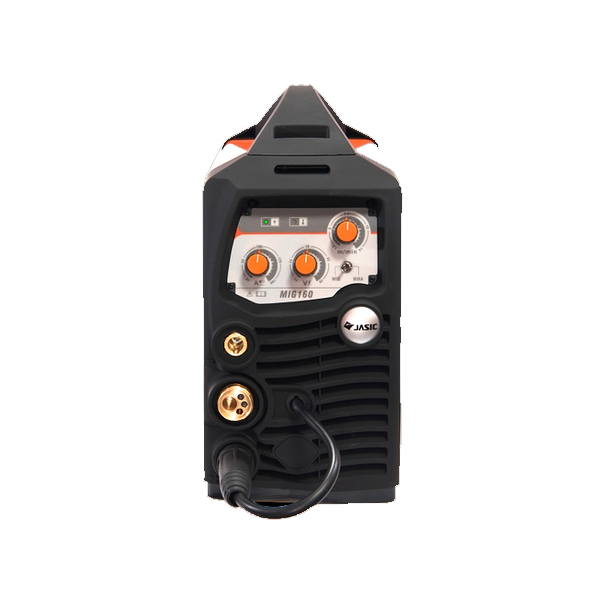

Jasic ZXJM-200C MIG 200 Multi Process Compact Inverter Package

£1,078.80 (£899.00 ex VAT)
x

Product Description

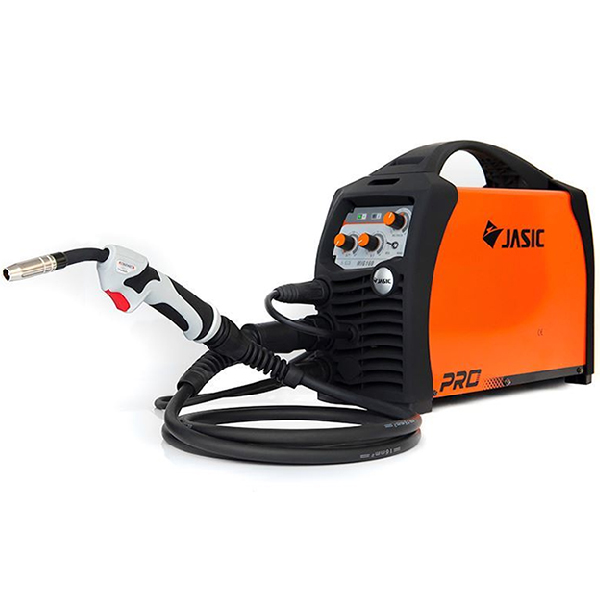

Package includes power source, MIG torch, gas regulator, work return lead & clamp

Single PCB compact welding inverter
IGBT MIG/MAG/MMA Multi Process
Inverter technology – for the professional user
Stable arc and reliable performance
Suitable for 0.6, 0.8 and 1.0mm wire
Compact size, lightweight and modern design

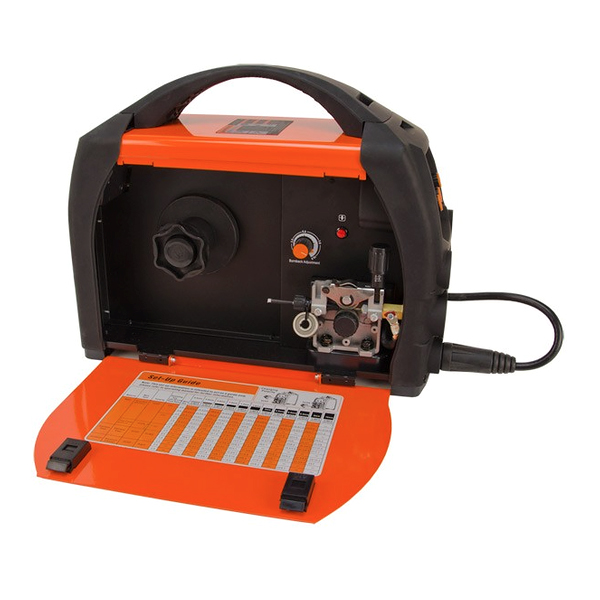

Burn back control
Ideal for production, site work & maintenance
Reverse polarity
Can weld electrodes of up to 4mm
Generator friendly**

Includes MIG torch, gas regulator, work return lead & clamp

Technical Data
Input Voltage AC 230V – 50/60 Hz
Ieff(A) 21
Input Power (kVA) 8
Voltage Adjustment Range (V) 11 – 28
Current Range (A) 30 – 200
Duty Cycle @ 40°C 200A @ 35%
No-Load Voltage (V) 53
Wire Spool Size ø 200mm
Efficiency (%) 85
Power Factor 0.7
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 485 x 185 x 370
Weight (Kg) 12.8

*5 year warranty subject to product registration
**Generators should have regulated output
