Jasic ZXJM-252C MIG 252 Compact Inverter Package

£1,169.00 ex VAT

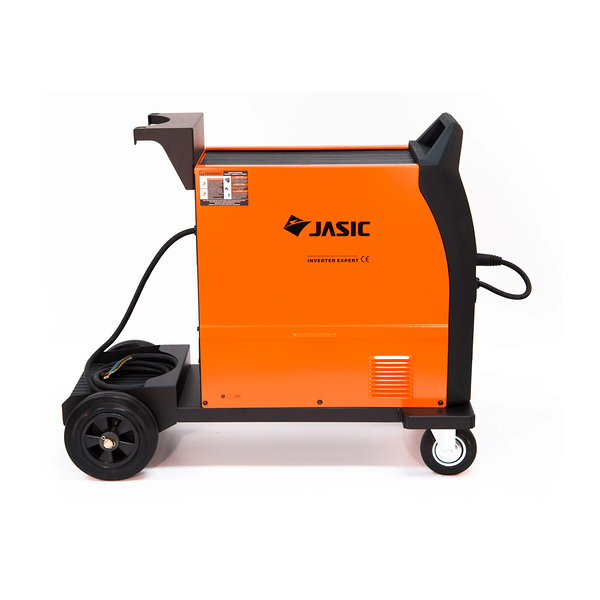

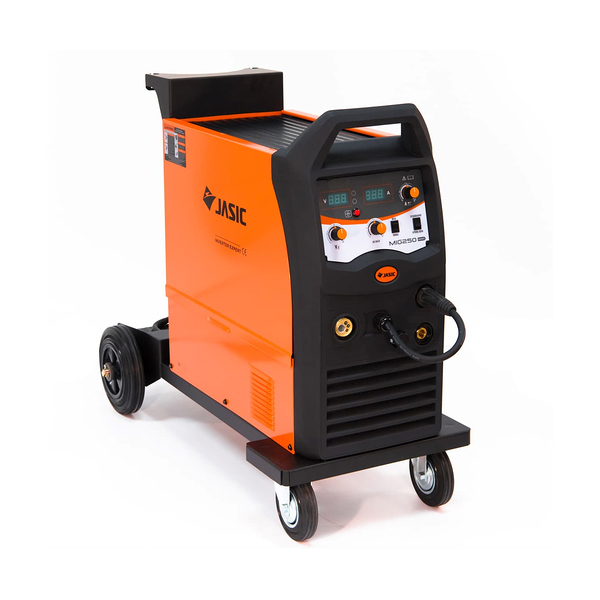

Jasic ZXJM-252C MIG 252 Compact Inverter Package

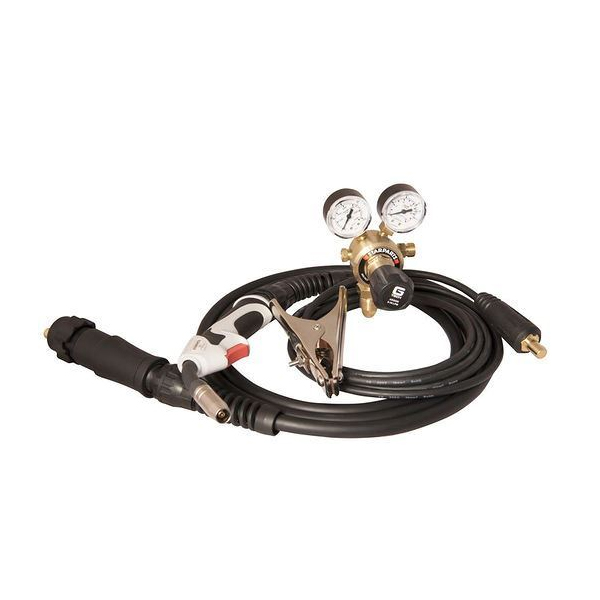

Package includes power source, MIG torch, gas regulator, work return lead & clamp

Consistently reliable performance for demanding and repetitive weld cycles
The all-new Jasic MIG 250 MIG Compact inverter welder is equipped with powerful IGBT components, a digital A/V display and the option to weld in MMA (Stick) mode.
The welding inverter offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles.​
This high quality single-phase MIG inverter delivers an impressive 250 amps at 35% duty cycle, making the MIG 250 an excellent choice for medium duty fabrication work.​
Another great feature of this welding inverter is the option to connect a Spool Gun.

Product Detail

Technical Data
Input Voltage AC 230V – 50/60 Hz
Ieff(A) 28.4
Input Power (kVA) 11
Voltage Adjustment Range (V) 11 – 29
Current Range (A) 30 – 250
Duty Cycle @ 40°C 250A @ 35%
No-Load Voltage (V) 52
Wire Spool Size ø 300mm
Efficiency (%) 85
Power Factor 0.75
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 900 x 450 x 755
Weight (Kg) 48
