Jasic ZXJM-272S MIG 272S Separate Inverter Package

SKU: JM-272S Category: Tags: , , , , , , , , , , , ,
Brand:Jasic
£2,554.80 (£2,129.00 ex VAT)
x

Product Description

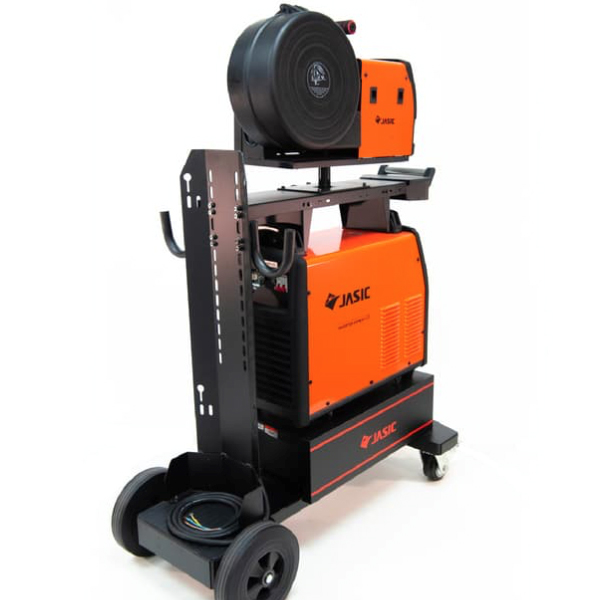

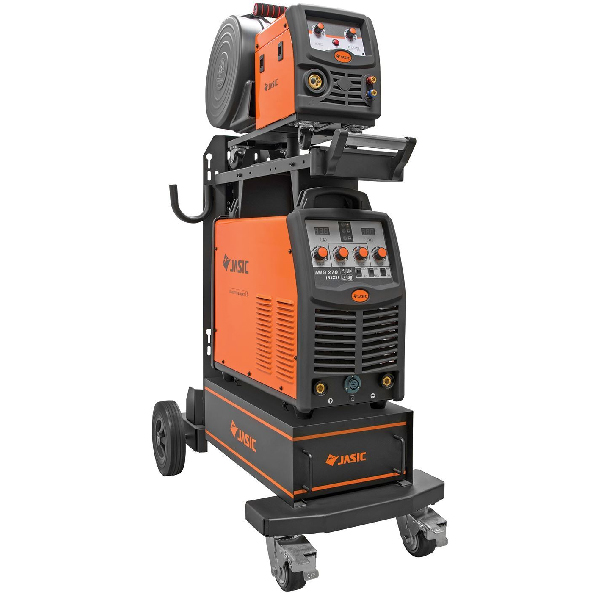

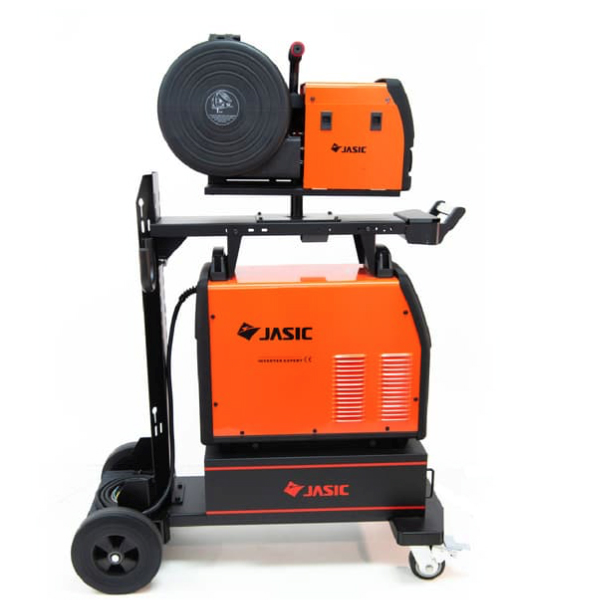

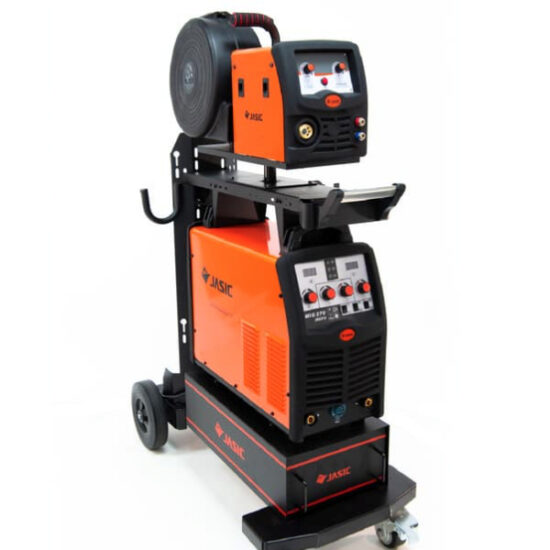

Jasic ZXJM-272S MIG 272S Separate Inverter Package

Includes MIG torch, trolley, 5mtr interconnecting cable, gas regulator, work return lead & clamp

Advanced single phase inverter providing rugged, reliable performance
Accommodates full size gas cylinder
Modern 4 Roll wire feed unit
Storage Box: air cooled model only
Replaced when fitted with optional water cooling unit JWC-05

Key Features
High power 230V multi process separate
IGBT MIG/MAG/MMA Inverter
Digital amp and voltmeter
High duty cycle
Advanced control circuitry
Burn back control & wire inching
Suitable for 0.6, 0.8, 1.0 and 1.2mm wire
2T/4T trigger function
Power & status LED’s
Gas check function
Variable inductanc

Technical Data
Input Voltage AC 230V – 50/60 Hz
Ieff(A) 28.9
Input Power (kVA) 12.1
Voltage Adjustment Range (V) 11 – 29
Current Range (A) 30 – 270
Duty Cycle @ 40°C 270A @ 30%
No-Load Voltage (V) 54
Wire Speed (m/min) 0 – 16
Efficiency (%) 85
Power Factor 0.75
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 1020 x 505 x 1460
Weight (Kg) 101
