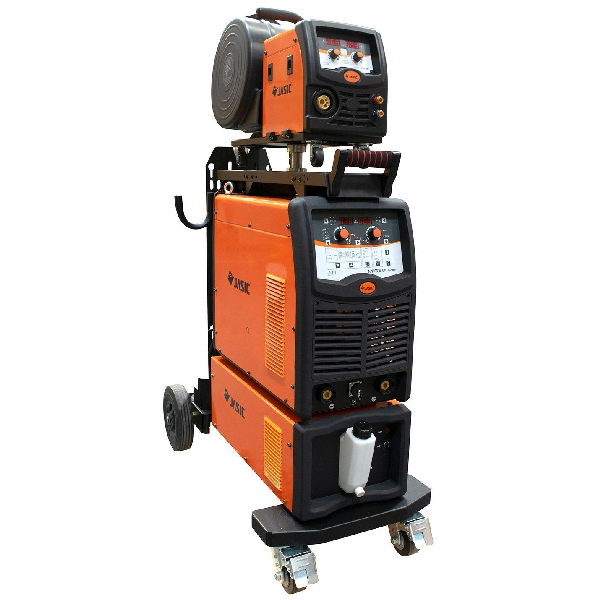

Jasic ZXJM-500P MIG 500P Inverter Water Cooled Package

£6,780.00 (£5,650.00 ex VAT)
x

Product Description

Jasic ZXJM-500P MIG 500P Inverter Water Cooled Package

The Jasic MIG 500P is a high quality digital MIG/MAG power source. It provides low spatter consistent welding with minimal rework on a wide range of materials. The Jasic MIG 500P provides multi process pulsed MIG, synergic MIG, TIG and MMA options for a wide range of applications.

KEY FEATURES
IGBT multi process inverter
Pulsed MIG, MIG/MAG, TIG and DC MMA
Synergic or standard operating modes
DSP digital technology for optimum welding performance
Smart fan and water control
Job storage system
4 roll wire feed unit
Suitable for 0.8, 1.0, 1.2 and 1.6mm welding wire
Easy parameter settings for the operator
Synergic curves for common materials & wire diameters
Self diagnostic system
Encoder feedback control of wire feed system
Power & status LED’s
Inverter trolley takes full size gas bottle

TECHNICAL DATA
Input Voltage 400 +/- 20% 3P
Ieff (A) 28.6
Input Power (kVA) 26.7
Voltage Adjustment Range (V) 10 – 50
Current Range (A) 30 – 500
VRD Voltage MMA (V) 15
Duty Cycle @ 40°C 500A @ 50%
No-Load Voltage (V) 86
Wire Speed (m/min) 1.5 – 23
Efficiency (%) 92
Power Factor 0.9
Protection/Insulation Class IP23S/F
Dimensions (LxWxH mm) 1080 x 510 x 1180
Weight (Kg) 129
