Product Description

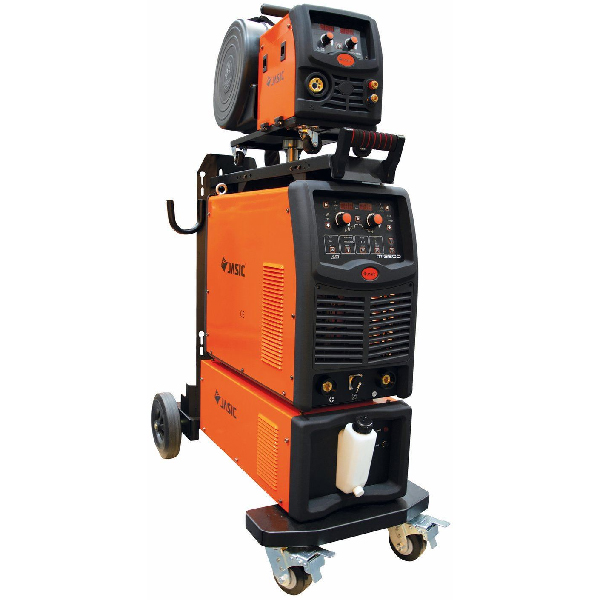

Jasic ZXJM-500SYN MIG 500S Inverter Water Cooled Package

Powerful MIG/MAG Synergic System
The Jasic MIG 500S is a powerful MIG/MAG synergic welding system. It is suitable for use in the most demanding situations and its digital controls and displays make it easy to use.
It has synergic programs for a wide range of common wires and materials.

IGBT multi-process inverter welder
DSP digital technology for optimum weld performance
High duty cycle
4 Roll wire feed unit
Easy parameter setting for the operator
Suitable for 0.8/1.0/1.2/1.6mm wires
Self diagnostic system
Power & status LED’s
Encoder feedback control of wire feed system
Inverter trolley takes full size gas bottle

Inverter Package Includes: MIG inverter welder, Water Cooler, Inverter Trolley, 4 Roll Wire Feed Unit, Water Cooled MIG welding torch, Earth return lead, Gas hose and Regulator

Input Voltage 400 +/- 20% 3P
Ieff (A)28.7
Input Power (kVA) 24.2
Voltage Adjustment Range (V) 15.5 – 50
Current Range (A) MIG 60 – 500 MMA 30 – 500
VRD Voltage MMA (V) 15
Duty Cycle @ 40°C 500A @ 50%
No-Load Voltage (V) 80
Wire Speed (m/min) 1.5 – 22
Efficiency (%) 91
Power Factor 0.92
Protection/Insulation Class IP23S/F
Dimensions (LxWxH mm) 1020 x 505 x 1390
Weight (Kg) 129
