Jasic ZXJPT-180 Power TIG 180 SE Inverter Package

£610.80 (£509.00 ex VAT)
x

Product Description

Jasic ZXJPT-180 Power TIG 180 SE Inverter Package

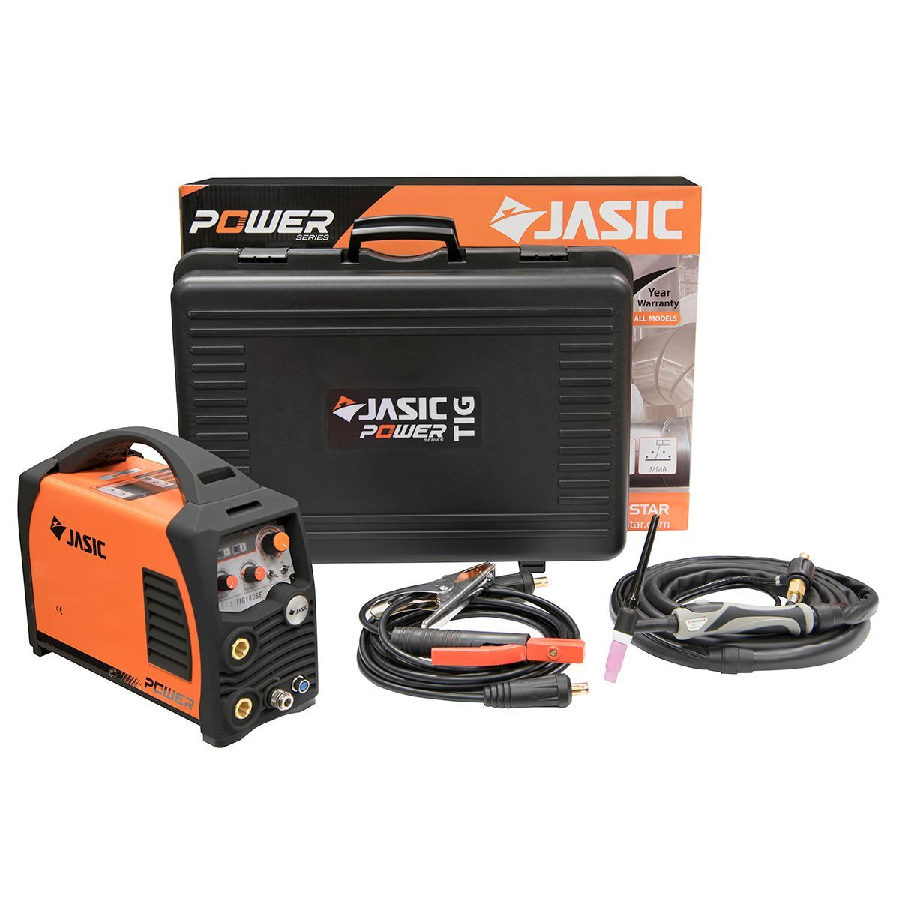

Jasic Power TIG 180 SE Inverter Package includes power source, TIG torch and adaptor, gas regulator, work return lead & clamp

Key Features
IGBT Inverter technology – for the professional user
DC TIG/MMA
Hot start, HF arc ignition, 2T/4T
Down slope & post flow
High frequency inverter, high efficiency
Compact size, lightweight and modern design
Heavy duty 35-50mm dinse sockets
Easy start, stable and reliable arc
Auto-compensation for voltage fluctuation
Advanced single PCB construction
Generator friendly**

High quality tactile rubber finish to mouldings & handle

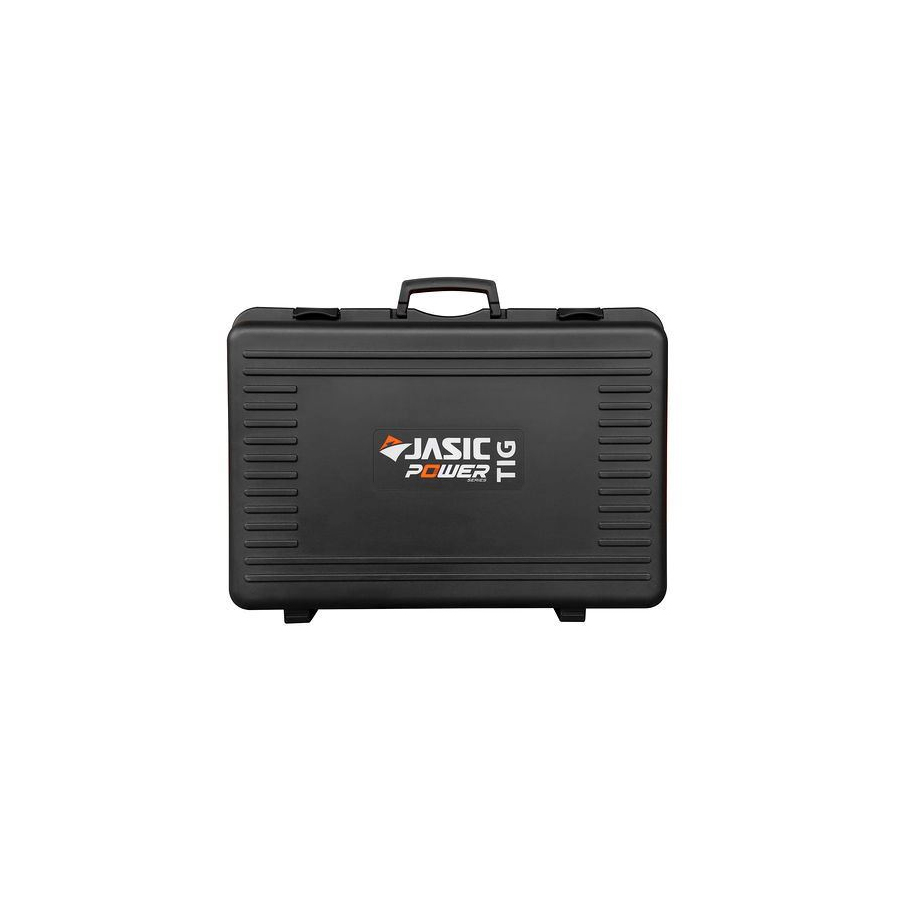

Includes; Protective case, MMA leads, TIG torch & adaptor, gas regulator

Technical Data
Input Voltage AC 230V – 50/60 Hz
Ieff(A) 16.5
Input Power (kVA) 7.1
Current Range (A) TIG 10 – 180 MMA 10 – 160
Duty Cycle @ 40°C TIG 180A @ 35% MMA 160A @ 35%
No-Load Voltage (V) 65
Efficiency (%) 85
Power Factor 0.7
Protection/Insulation Class IP21/F
Dimensions (LxWxH mm) 365 x 135 x 277
Weight (Kg) 5.94
*5 year warranty subject to product registration **Generators should have regulated output
