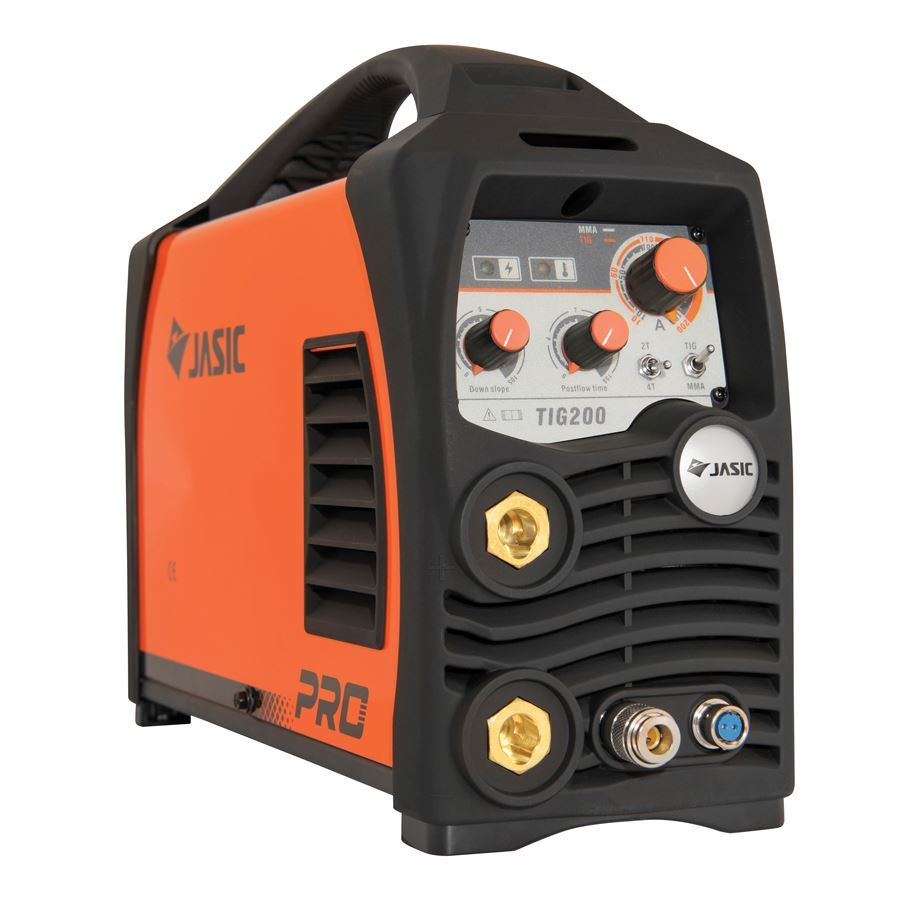

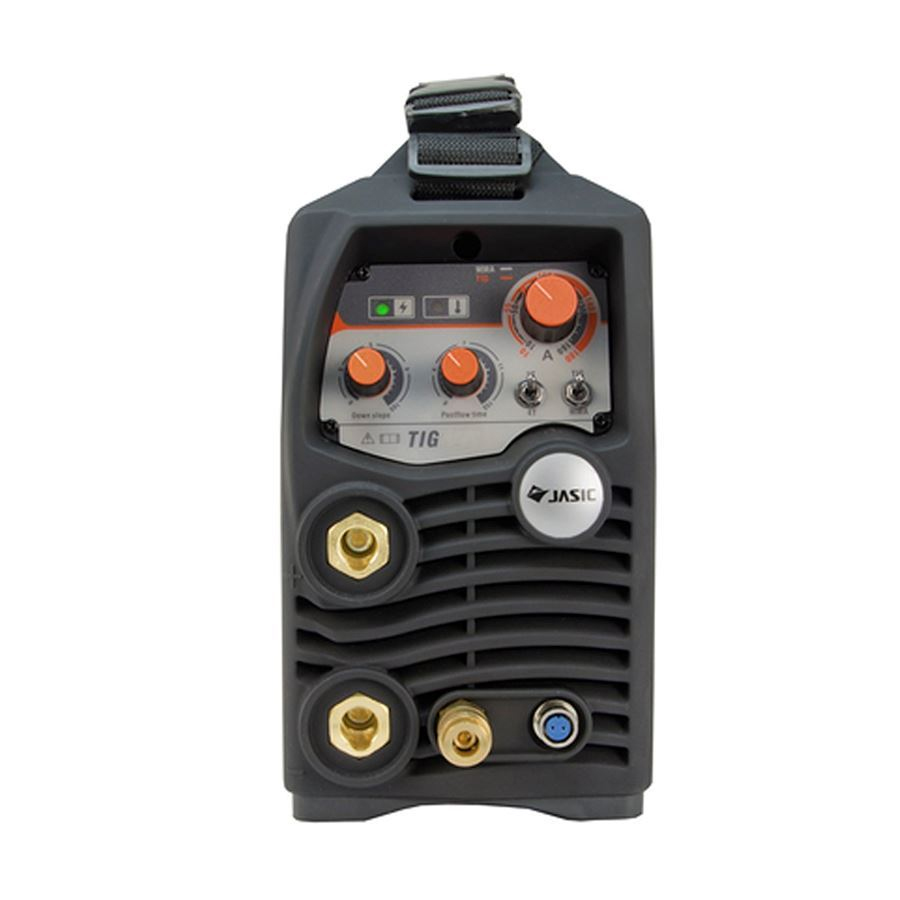

Jasic ZXJT-200 TIG 200 DC Inverter Package

Jasic TIG 200 230V DC Inverter Package includes power source, TIG torch and adaptor, gas regulator, work return lead & clamp

Key Features
IGBT Inverter technology – for the professional user
DC TIG/MMA
Hot start, HF arc ignition, 2T/4T
Down slope & post flow
High frequency inverter, high efficiency
Compact size, lightweight and modern design
Heavy duty 35-50mm dinse sockets
Easy start, stable and reliable arc
Auto-compensation for voltage fluctuation
Advanced single PCB construction
Generator friendly**

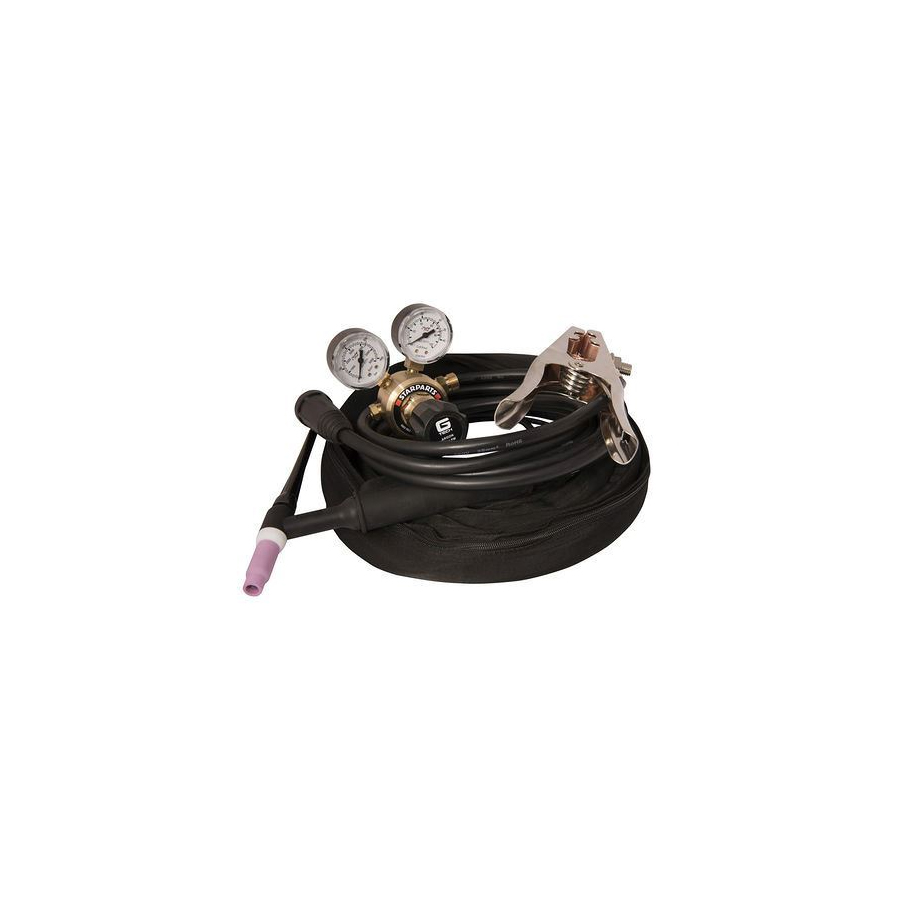

Includes; TIG torch & adaptor, gas regulator, work return lead & clamp

Technical Data
Input Voltage AC 230V – 50/60 Hz
Ieff(A) 18.9
Input Power (kVA) 8.2
Current Range (A) TIG 10 – 200 MMA 10 – 180
Duty Cycle @ 40°C 200A @ 35%
No-Load Voltage (V) 65
Efficiency (%) 85
Power Factor 0.7
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 365 x 135 x 277
Weight (Kg) 6.12
*5 year warranty subject to product registration **Generators should have regulated output
