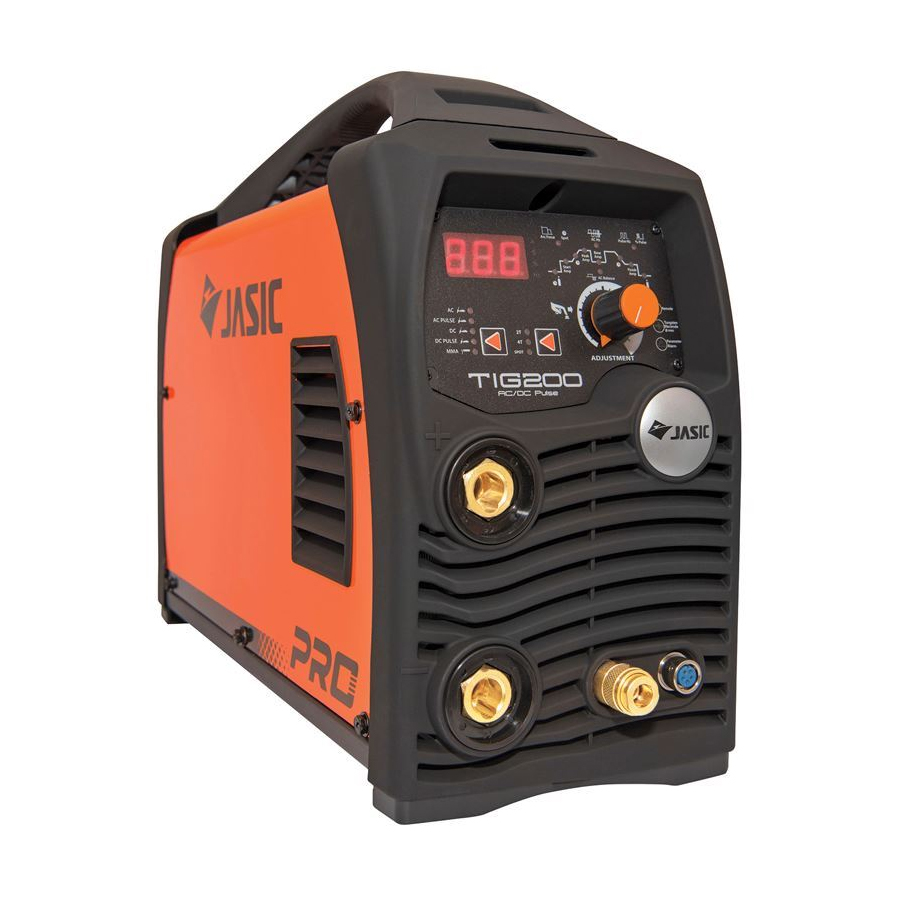

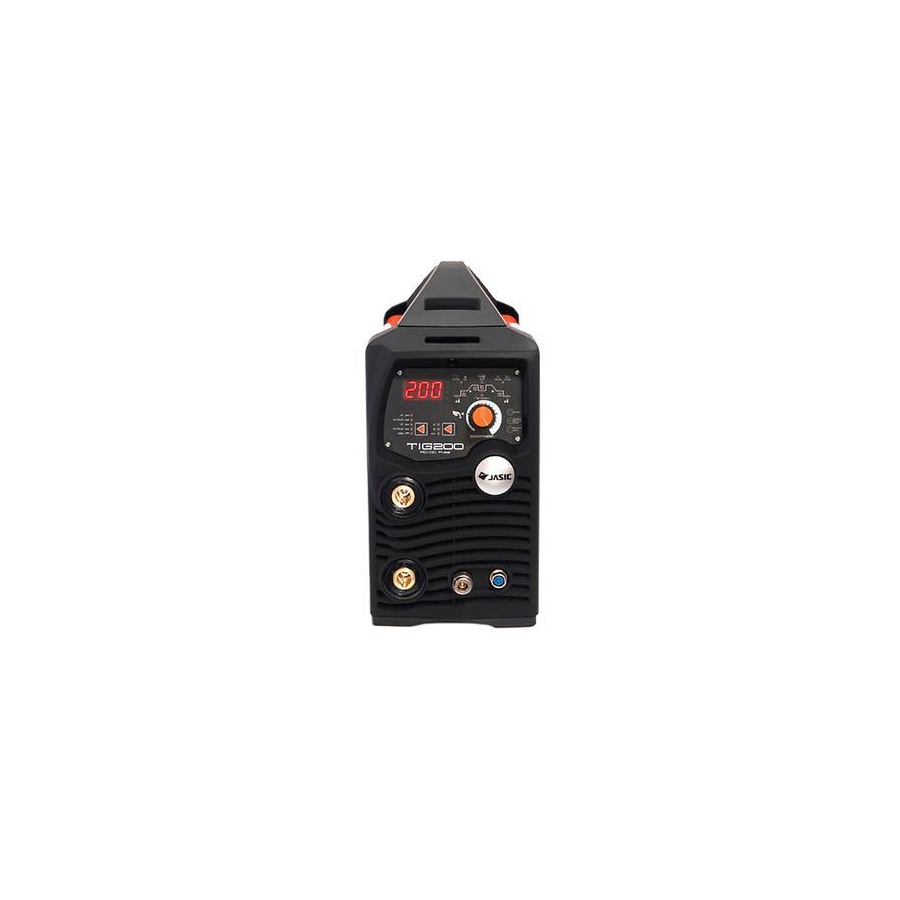

Jasic ZXJT-200DS TIG 200 Pulse AC/DC Mini Digital Inverter Package

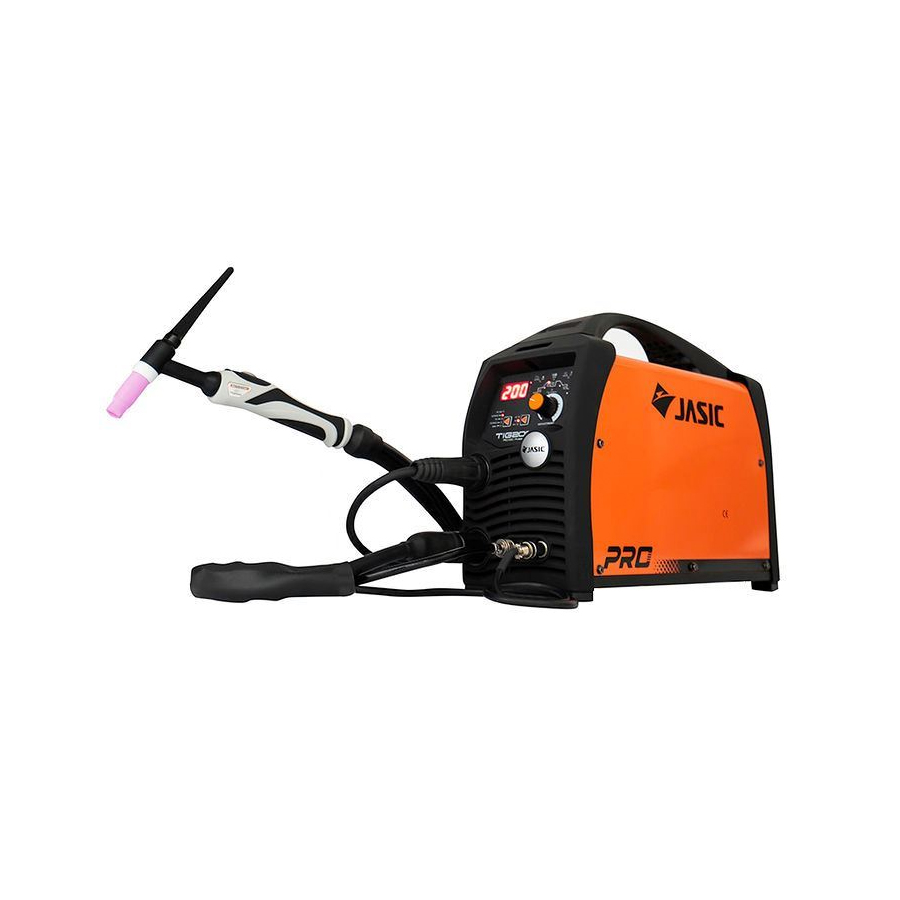

Jasic TIG 200P 230V AC/DC Compact Inverter Package includes power source, TIG torch and adaptor, gas regulator, work return lead & clamp

Key Features
Unique air channel design to give high performance and protection of the electronics
Microprocessor control for efficient control of welding parameters
Auto protection circuits to prolong the life of the equipment
Advanced arc ignition system
High frequency AC for narrow controlled arc and deeper penetration
High speed pulse welding for ultimate weld bead control

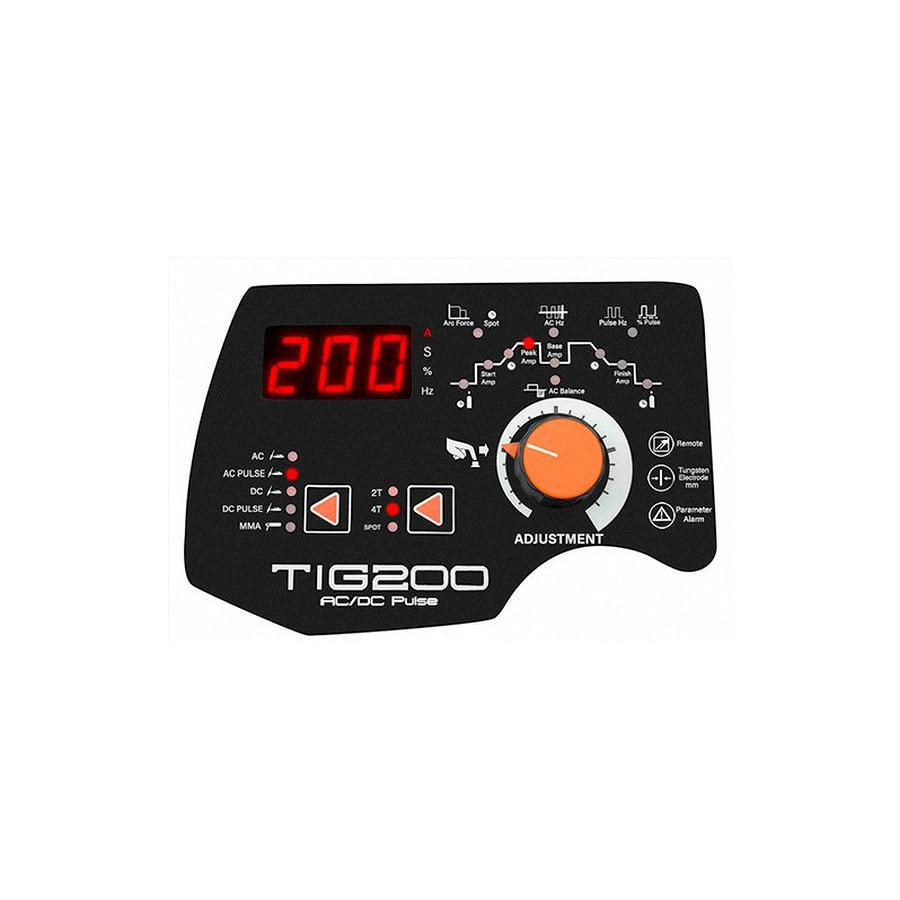

Easy to use intuitive control panel
Extensive range of adjustable parameters for precise control
Heavy duty 35-50mm dinse sockets
Auto save memory function
Tungsten selection system
Thermally controlled cooling fan
Optional remote controls
Generator friendly**

Technical Data
Input Voltage AC 230V – 50/60 Hz
Ieff(A) 16
Input Power (kVA) 6.9
Current Range (A) TIG 5 – 200 MMA 10 – 160
Duty Cycle @ 40°C TIG 200A @ 25% MMA 160A @ 30%
No-Load Voltage (V) 60
Efficiency (%) 85
Power Factor 0.7
Protection/Insulation Class IP21S/B
Dimensions (LxWxH mm) 435 x 160 x 34
