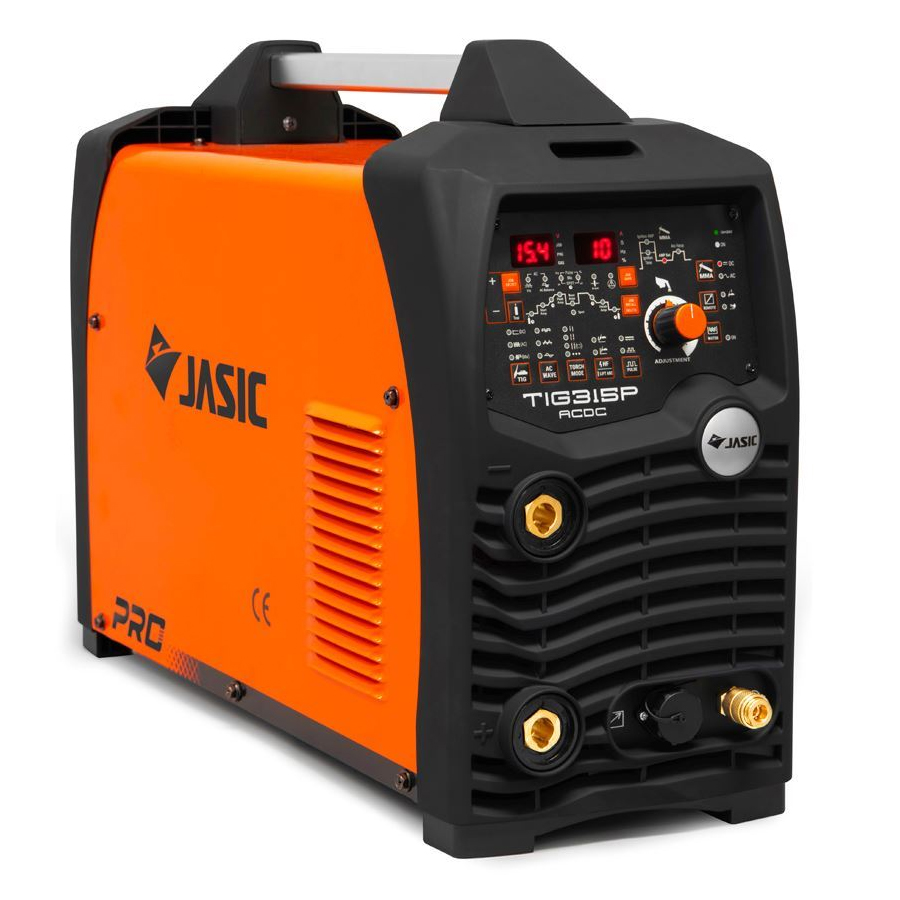

Jasic ZXJT-315MWD TIG 315D AC/DC Multi Wave Pulse Inverter Package

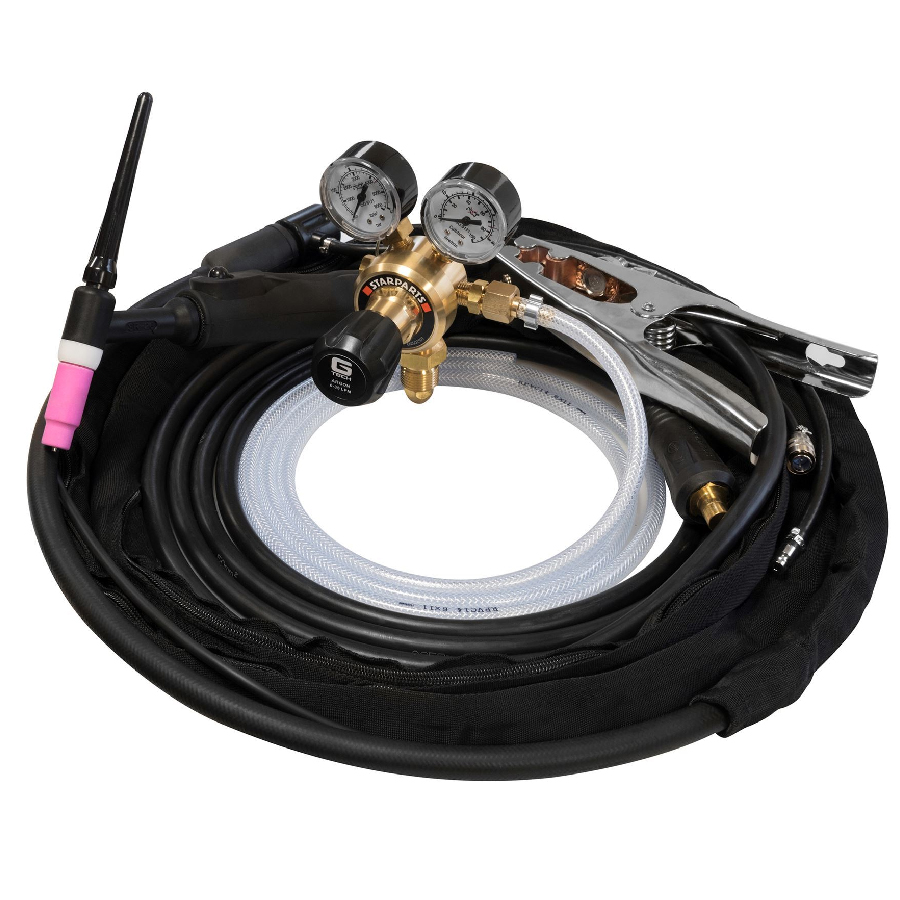

Jasic TIG 315P AC/DC Multi Wave Digital Inverter Air Cooled Package includes power source, TIG torch and adaptor, gas regulator, work return lead & clamp

Key Features

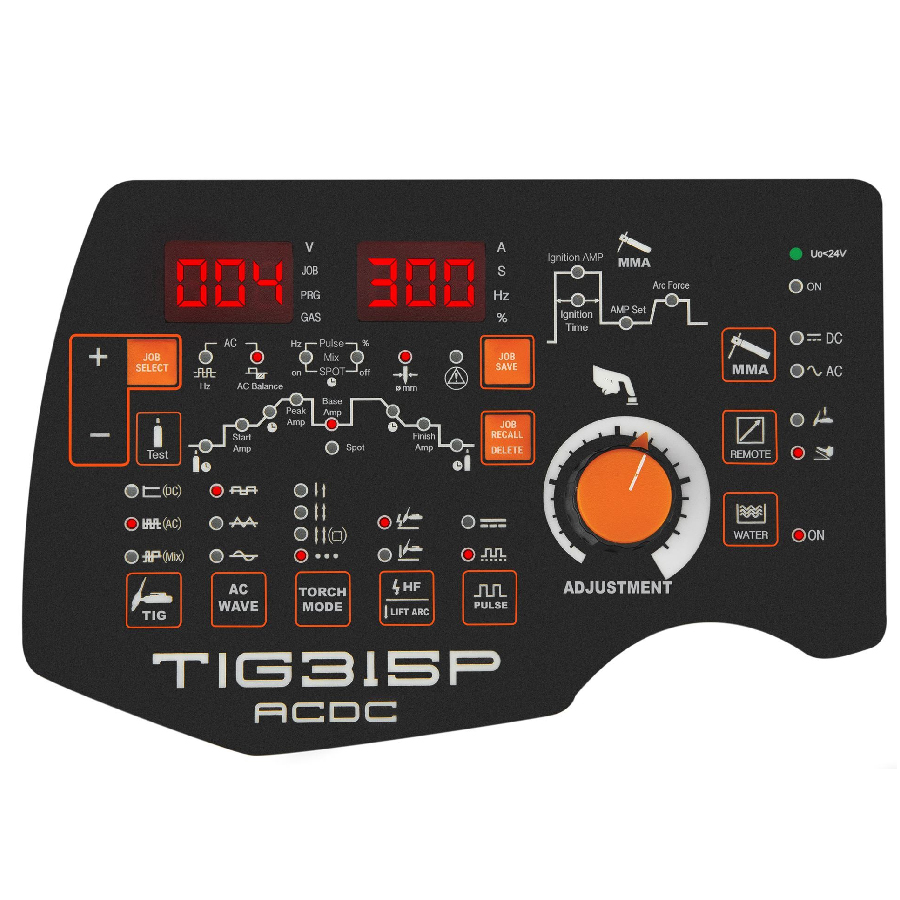

TIG AC/DC with digital control
Program memory storage up to 50 sets of data
Microprocessor control of a wide range of functions
Multi wave options on AC
Variable AC frequency
Remote control interface
VRD function
Intelligent fan and cooler control
Excellent welding characteristics
Handle for ease of portability

Technical Data
Input Voltage AC 400V +/-15% – 50/60 Hz
Ieff (A) TIG 10 MMA 12.4
Input Power (kVA) 14
Current Range (A) TIG 10 – 315 MMA 10 – 270
Duty Cycle @ 40°C TIG 315A @ 30% MMA 270A @ 30%
No-Load Voltage (V) 73 (12.4V – VRD)
Efficiency (%) 85
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 566 x 224 x 405
Weight (Kg) 25.5
