SKU: 79510168
Trolley: None

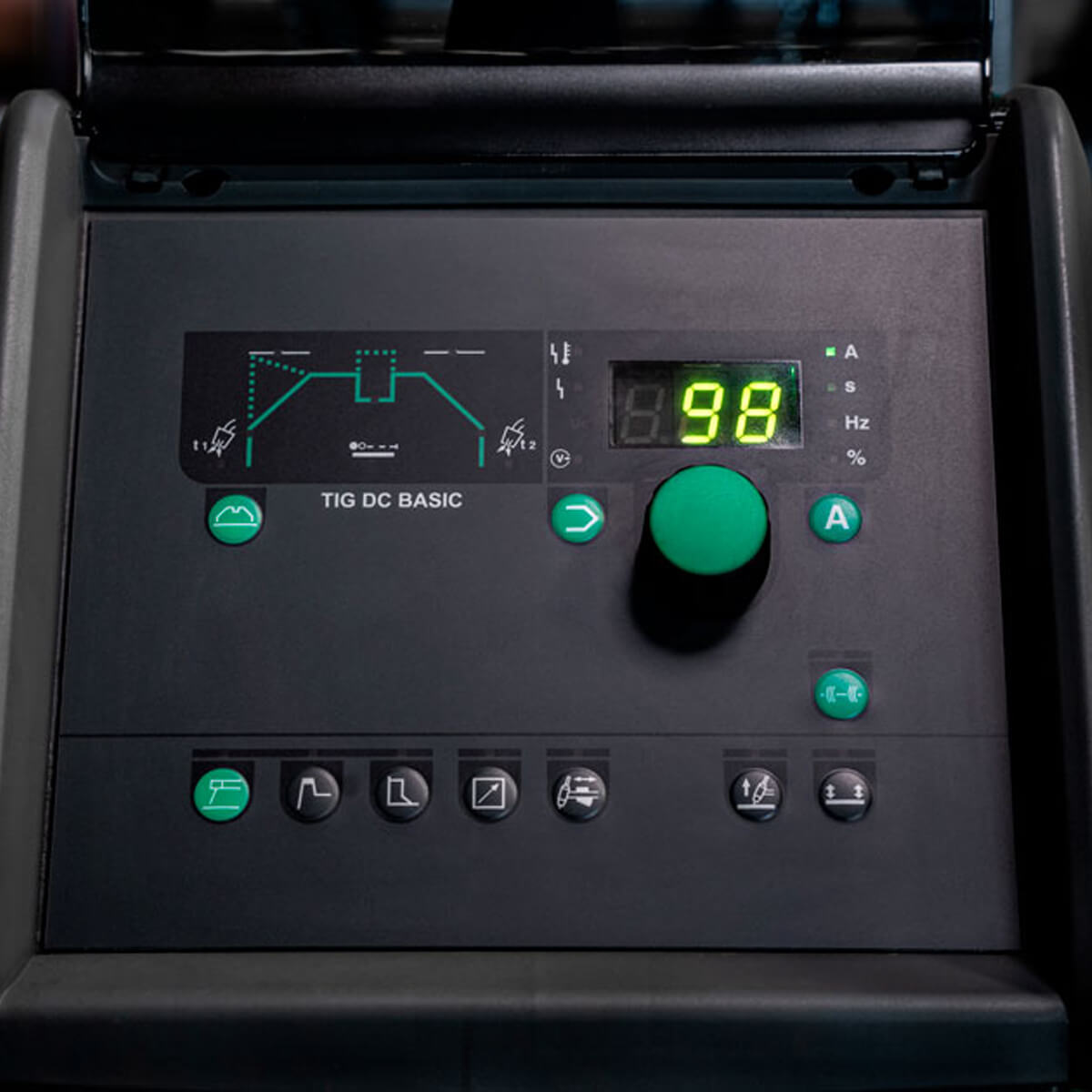

Control Box: TIG DC
PFC: Yes
Mains Cable: Without Shukoplug
Remote Control Plug: None
Earth Cable: Earth Cable 3m 25mm²
Electrode Cable: None
Tig Welding Torch: Tig Ergo 201 4m 7P
Wear Parts F. Tig Torch: STD Wearing Part Set TIG201/401
Cooling: Air
Calibration Certificate: No

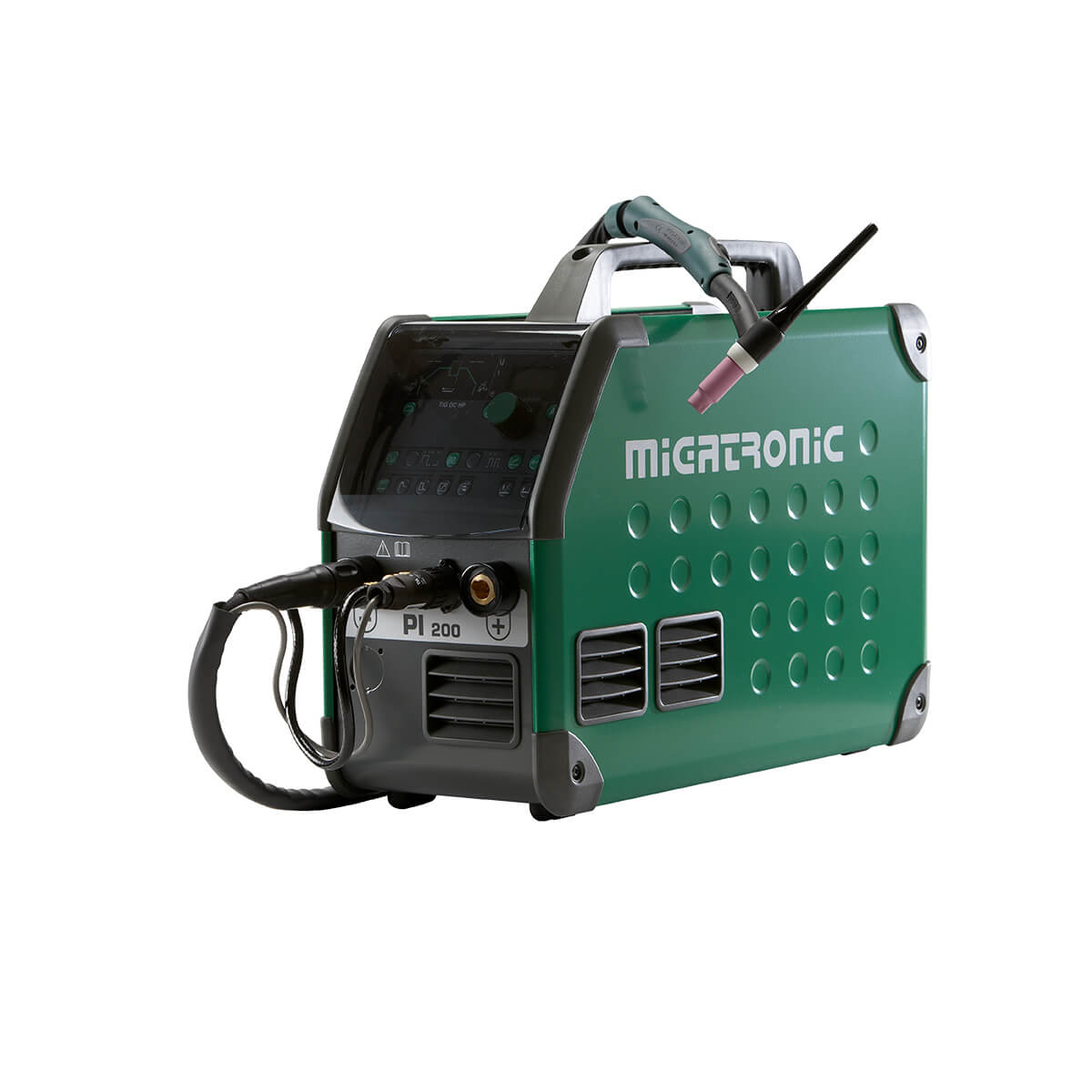

200DC HP | AC/DC
Current range 5-200 A
Mains voltage +/- 15 % 1 × 230 V
Fuse type C 16 A
Mains current, effective 17.5 A | 18.6 A
Mains current, effective 24.3 A | 26 A
Open circuit voltage 95 V
Efficiency 85 % | 80 %
Application class S/CE
Protection class IP 23
Standard EN/IEC60974-1. EN/IEC60974-3. EN/IEC60974-10.
Dimensions (H × W × L) 360 mm × 220 mm × 520 mm
Weight 22 kg | 24 kg

Duty cycle 200DC HP | AC/DC
Duty cycle 100 %/20 °C (TIG) 170 A | 160 A
Duty cycle 60 %/20 °C (TIG) 200 A
Duty cycle 100 %/40 °C (TIG) 150 A/16 V | 140 A/15.4 V
Duty cycle 100 %/40 °C (MMA) 130 A/25.2 V
Duty cycle 60 %/40 °C (TIG) 170 A/16.8 V
Duty cycle 60 %/40 °C (MMA) 150 A/26 V
Duty cycle max./40 °C (TIG) 200 A/40 %/18 V
