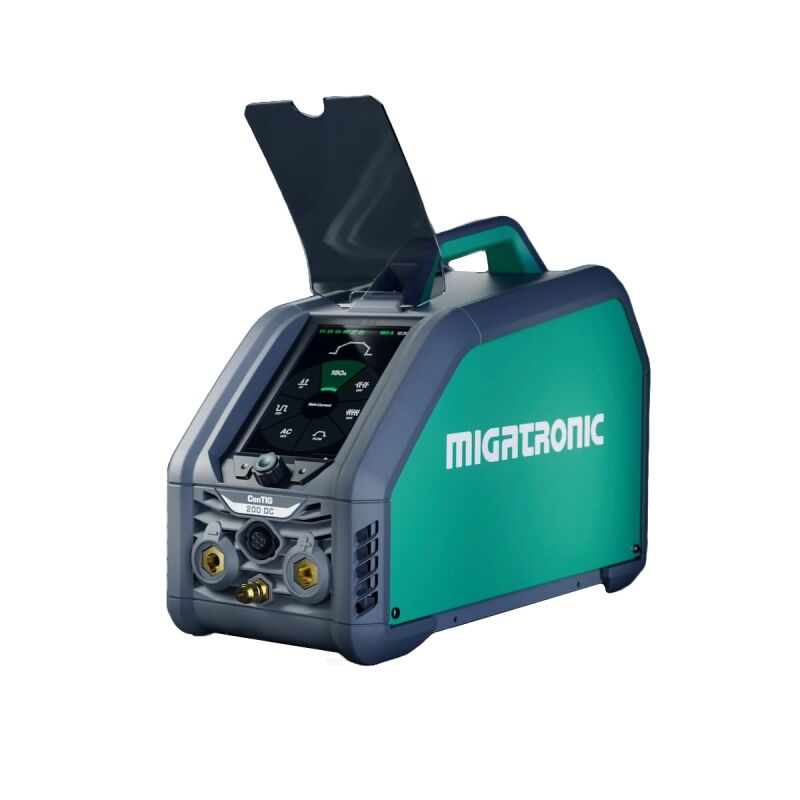

Migatronic CenTig 200DC, Single Phase Tig Welder

£2,775.00 ex VAT

Migatronic CenTig 200DC, Single Phase Tig Welder

The new CenTIG 200
A new single-phase TIG welder that offers unrivalled performance at 200 amps.
Experience the fusion of power and mobility with exceptionally lightweight equipment,
designed for professional TIG welders.

The most powerful single-phase TIG welder at 200 amps
CenTIG is so robust and reliable that it can be used continuously with its maximum load of 100 %
Duty cycle without any downtime to prevent overheating or overloading
Wear and tear.

The most versatile single-phase TIG welding machine for production
CenTIG can be used for a wide range of applications - from repair work to

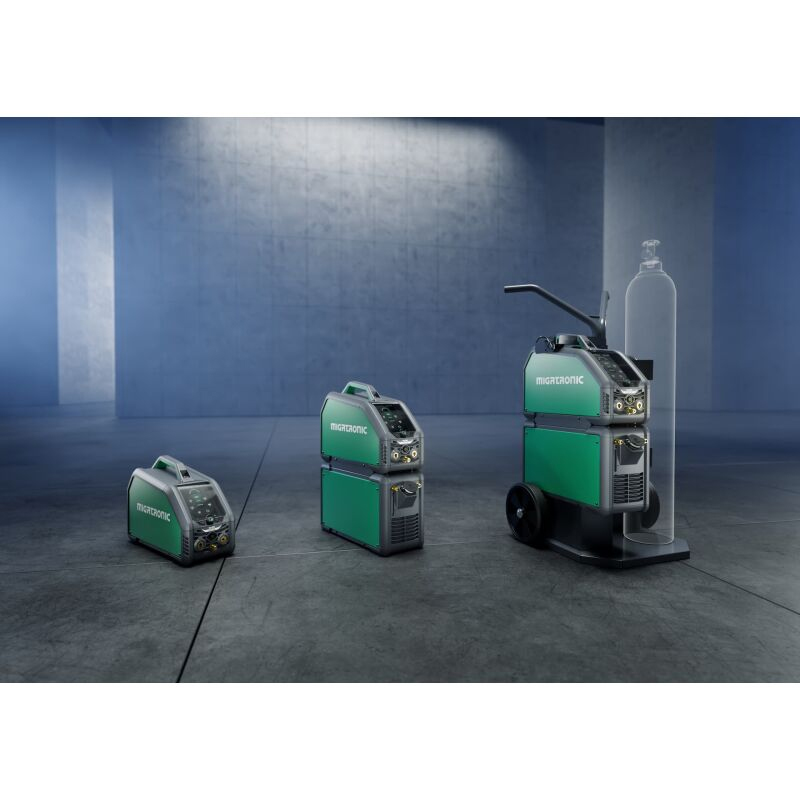

to daily production. Configurations include DC and AC/DC models with pulse, air-operated
or water-cooled and with all the necessary functions.

Extremely light
A welder will not strain his back,
when carrying CenTIG with only 12 kg.

Incredibly compact
A welder can always transport CenTIG easily,
when working on the construction site on the hard-to-reach
Places on the construction site.

Easy to transport
With the ergonomic carrying strap, the welder is now
more mobile than ever before.

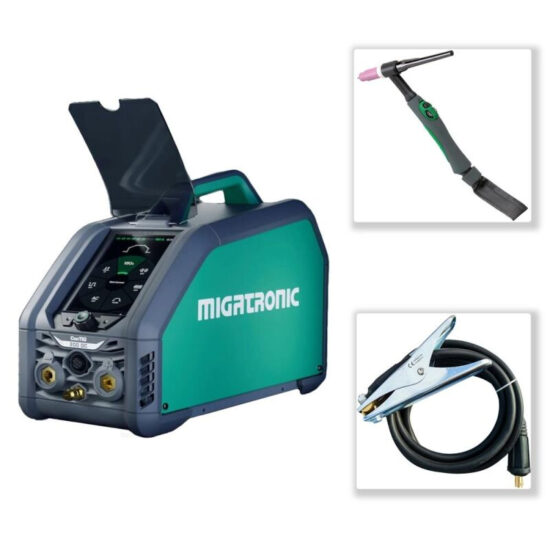

Whats included?

CenTIG 200 DC system
Torch holder TIG Ergo 201 4M
Earth cable 3m with clamp
Gas hose
including 5m mains cable with Schuko plug

Product Detail

Technical data cenTIG 200 DC HP / AC/DC
  tIG / MMA
current range (TIG) 5-200 A / 10-137 A
mains voltage +/-15% 1×230 V
efficiency 87 %
no-load power max. 30 W
frequency (AC) 25-300 Hz
duty cycle 40%/40° 200 A
duty cycle 60%/40° 200 A
duty cycle 100%/40° 200 A
electrode dimension 1.0-3.2 mm
display size 7″
mains plug schuko
front plug

1 x plug (+)
1 x plug (-)
1 x burner plug, 7-pin
1 x quick coupling for shielding gas

plug on the rear

1 x CAN connection for water cooling unit
1 x Mains connection to water cooling unit 5-pin
1 x USB A connector for software update
1 x gas connection
1 x power button

dimensions (HxWxL) 356 x 210 x 543 mm
weight (AC/DC) 12.7 kg
weight (DC) 12 kg
application class s/CE
protection class iP 23S
operating temperature range -10 – +40 °C

standards dS/EN IEC 60974-1
dS/EN IEC 60974-10, class A
dS/EN IEC 60974-3
