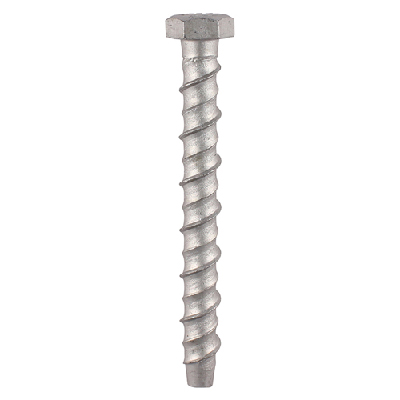

Multi-Fix Masonry Bolts MF10130 10 x 130mm (Pack of 50)

£38.99 (£32.49 ex VAT)

In stock (can be backordered)

x

Product Description

This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.

Designed to replace traditional expansion anchors
TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
High-Low parallel threads for ease of insertion and high pull-out values
Removable & adjustable non-expansion through fixing
Unique concave thread configuration
All steel, non-flammable fixing conforming to BS 7671 standard’s 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

Brand TIMCO
Carton Qty (packs) 4
Corrosion Rating (1-5) 3 – Urban & industrial areas with a low salt atmosphere
Drill Hole Ø (mm) 10
Feature 5 Unique concave thread configuration
Feature 6 All steel, non-flammable fixing conforming to BS 7671 standard’s 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Finish Exterior (Silver Organic)
Fixture Hole Size Ø (mm) 12
Head Type Hex
MFT (mm) 80
MOQ 1
MOQ Increment 1
Pack Dimensions L x W x H (mm) 194 x 136 x 92
Pack Qty 50
Pack Type Box
Pack Weight (kg) 4.44
Point Type Chamfered
Size Ø x L (mm) 10.0 x 130
Socket Size (mm) 17
Substrates Wood, Concrete, Brick, Block, Stone
Thread Coverage Partially Threaded
Thread Type High-Low Parallel
