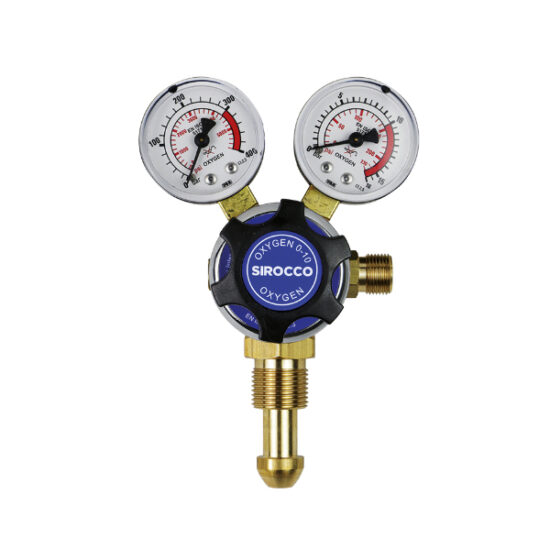

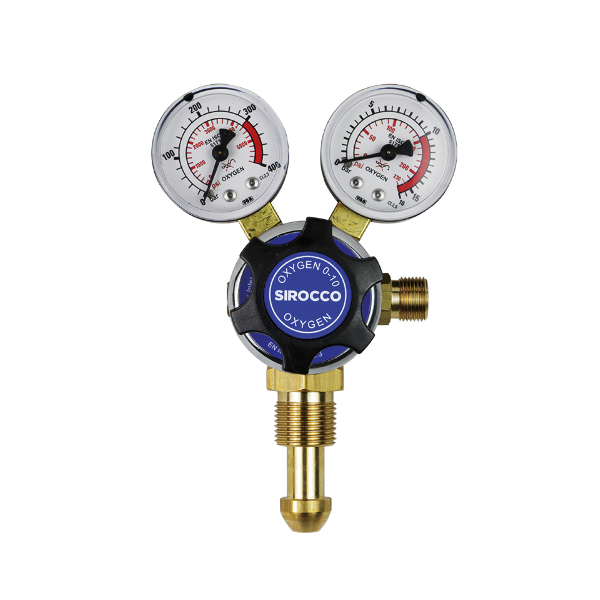

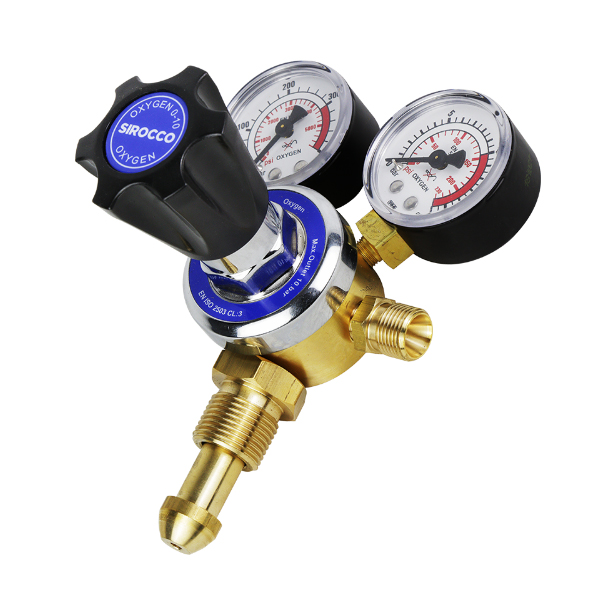

Parweld 700122 2 Gauge Oxygen Regulator

Sirocco Everyday Single Stage Oxygen Gas Regulator. Oxygen Regulators have a 300 bar capability with a 10 bar maximum outlet pressure. Sirocco Gas Regulators allow for extended service with its robust construction. Reliable and Consistent Delivery can be achieved due to the high-quality valve operation. 2 Gauge Oxygen Regulators provide optimal gas consumption due to their accurate gauges.

Features:
Flow rate up to 96m³/h (3389 ft³/h)
Full 300 Bar Capability
Bottom entry design suited for top outlet cylinder valves
Improved Valve design to reduce gas pressure pulses

Fittings:
Fitted with 1/4” G parallel threaded gauges
Fitted with standard 3/8” BSP outlet
Fitted with 5/8” BSP inlet connections

Weight N/A
Input Pressure
300 Bar

Outlet Pressure
10 Bar

Flow Rate
Up to 96m³/h (3389 ft³/h)

Gauge Fitted
1/4″ G Parallel Threaded

Outlet
3/8″ BSP, Standard

Inlet Connections
5/8″ BSP

Design
Bottom entry design suited for top outlet cylinder valves, Improved Valve design to reduce gas pressure pulses

Set Size
Single Piece

Conforms To
EN ISO 2503 CL:3
