Parweld XR938H Welding & Grinding Helmet

£57.99 ex VAT

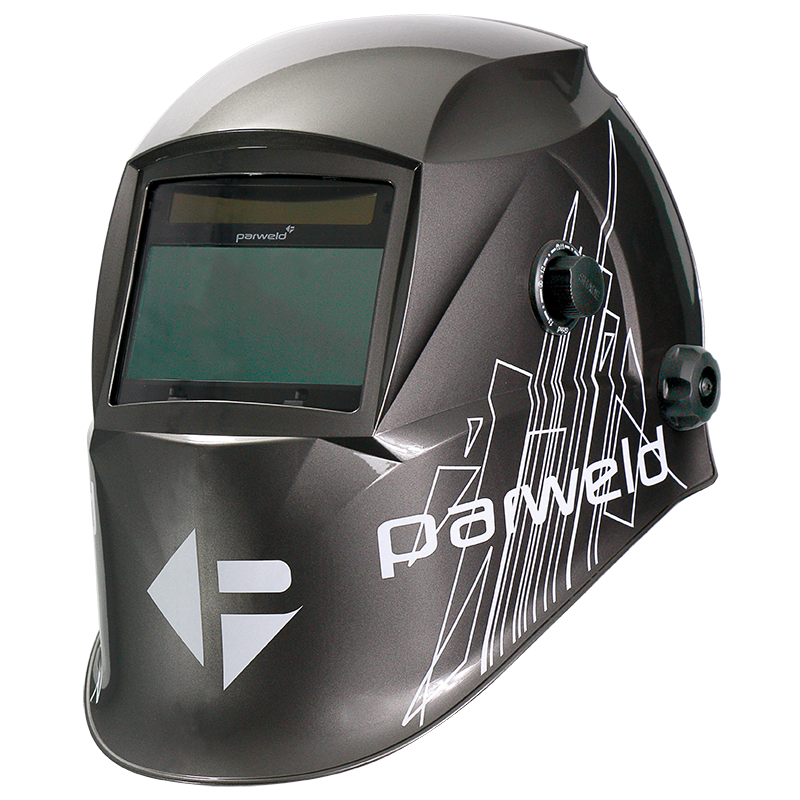

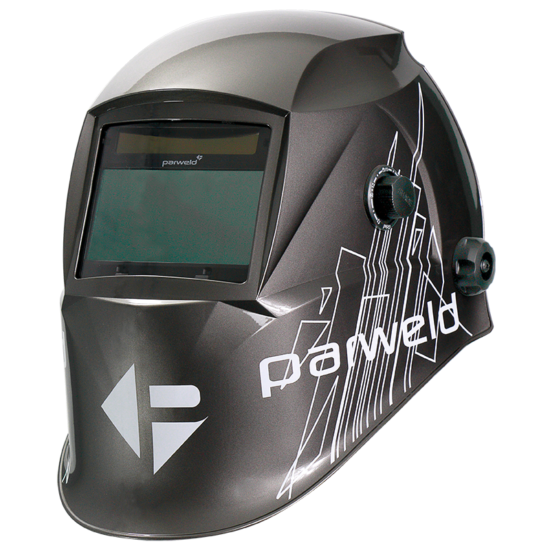

Parweld XR938H Welding & Grinding Helmet
Full Face Curved Design & Variable Sensitivity

The XR938H True Colour Light Reactive Welding and Grinding Helmet is both slim and lightweight in construction. Manufactured from a high impact polyamide nylon material which ensures the helmet provides high levels of comfort and durability. The metallic paint finish ensures maximum heat reflection.

With Full Face Coverage, curved design with a clear spatter shield over the optics provides maximum clarity. The helmet is fully adjustable to suit all head and body types. Features full neck coverage, locking headgear and automatic power on/off switch.

The auto on, auto darkening, wide view lens switches from light to dark in 1/30,000th of a second and offers continuous eye protection against UV and IR radiation, even when the lens is in the light state mode. The grinding switch is conveniently located on the outside of the helmet. The switch locks the filter in the light state (Shade DIN 4) to enable the helmet to be used as a grinding visor.

The helmet is powered by a solar cell with replaceable backup battery.

The welding filter has 4 sensors that react independently as the welding arc is struck enabling the almost instantaneous darkening of the filter. The switching sensitivity knob is located on the inside of the helmet and allows the helmet to be tuned to work in different ambient light levels. All Parweld filters have a Shade 4 light state, ideal for welding preparation.

Product Detail

Weight N/A
Viewing Size 100 x 53mm (3.94” x 2.08”)
Cartridge Size 110mm x 90mm (4.33” x 3.54”)
Style & Design Blue, Eagle, Flame, Graphite, Red, Silver
Grind Mode Yes
External Shade Control Yes
Shade May-13
Light State DIN Shade 4
Dark State DIN Shade 5 to 13 Variable
Dark to Light 0.1-1.0 seconds (External variable)
Switching Time Light to Dark 1/30,000th of a Second
Delay Variable
Sensitivity Variable
UV/IR Protection Permanent Shade DIN16
Power Supply Built-In Solar Cells and Replaceable Battery Pack
Battery Life Expectancy 2 years
Minimum Amp Requirement 5A
Power On/Off Fully Automatic
Storage Temperature -20ºC to +70ºC (-4ºF to -158ºF)
Operating Temperature -10°C to +60°C (14°F to 140°F)
Material High Impact Polyamide Nylon
Suitable for TIG Welding
Warranty 24 months
Conforms To BS EN 166:2002, BS EN 175, BS EN 175:1997, BS EN 379, BS EN 379:2003+A1:2009, EN 166
