Product Description

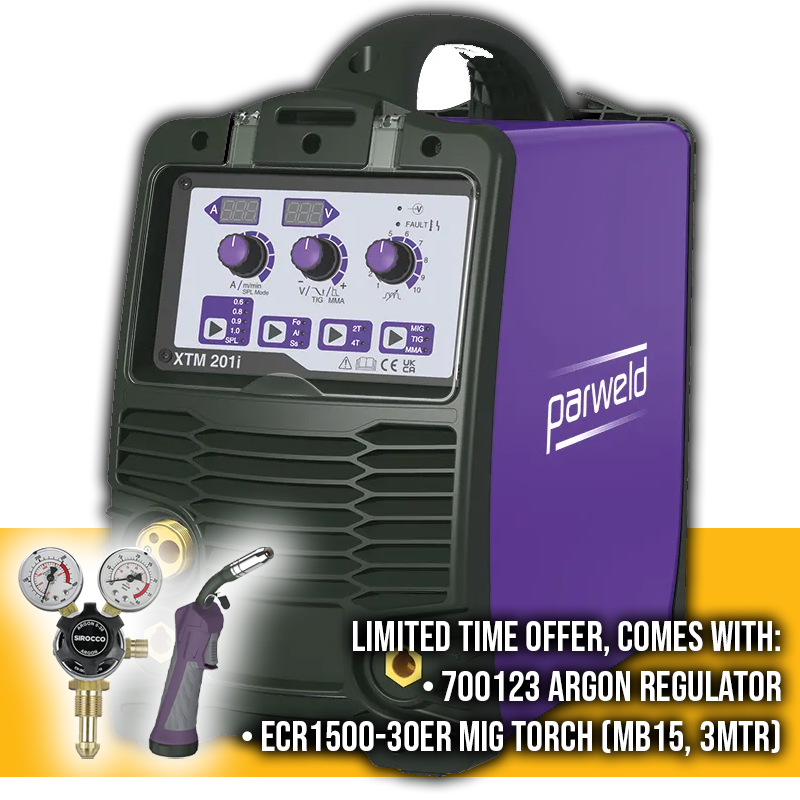

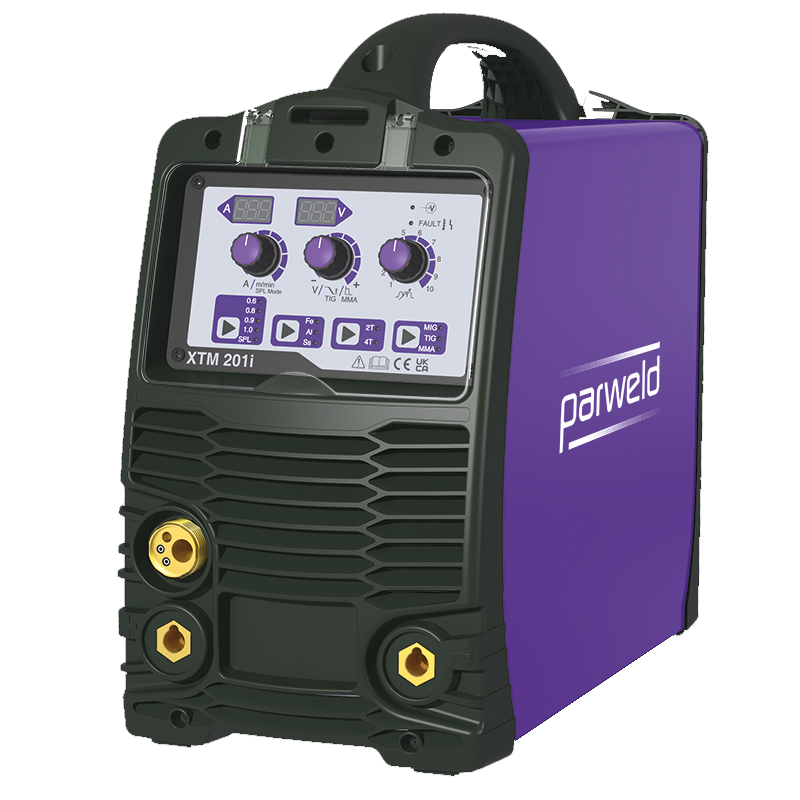

Parweld XTM201l-P1 200A MIG Inverter Machine
– LIMITED TIME OFFER, COMES WITH: –
• 700123 Argon Regulator
• ECR1500-30ER Mig Torch (MB15, 3Mtr)
Portable 230V Single Phase MIG Power Source Inverter Welding Machine from Parweld. The XTM 201i is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The smooth DC output ensures excellent arc characteristics. Materials up to 4mm can be welded with ease. Synergic control provides rapid setting. Lightweight construction means the machine is very portable and the removable Euro connection torch makes for easy transport and storage. Can be used in MMA, Lift TIG, MIG manual and synergic with or without GAS. Wire sizes of 0.8-1.0mm can be used with ease. The machine is housed in a steel case with an integrated carry handle.
Key Features Include:
230V Single Phase Machine
Synergic MIG
Lift TIG and MMA Welding
Compact and Portable
200A @ 25% Duty Cycle
Gas or Gasless Operation Options
2T / 4T Trigger Latching
Accepts 5kg (200mm) Spools
Supplied with 3m Earth Lead
Weight | 15.5 kg |
---|---|
Dimensions | 469 × 223 × 421 mm |
Phase |
Single Phase |
Machine Style |
Compact, Portable |
Machine Type |
Inverter |
Maximum Current |
200A DC |
Duty Cycle |
200A @ 25% Duty Cycle |
Input Voltage |
230V 1P |
Voltage |
18-26.5V |
Feed Box |
2 Roll Drive |
Input Current (Eff) |
18A |
Output |
DC |
Wire Feed Speed |
2-15m/min |
Wire Size |
0.6-0.8mm |
Spool Size |
100mm (1kg), 200mm (5kg) |
Minimum Fuse Rating |
16A |
KVA |
7 |
Generator Size (Requires AVC) |
10 KVA |
Cooling |
Air, Fan, Forced |
Comes With |
3m Earth Cable, 3m Input Cable, Gas Hose |
Ideal for Applications |
Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Sheet Metal Work, Site Welding, Training |
Special Features |
2T/4T Trigger Latching, Lift TIG and MMA, Synergic MIG |
Warranty |
3 Year Service, 3 Year Warranty |
Conforms To |
IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
#parweldoffer2023
