Parweld XTS163-P2 230v 160A MMA Lift TIG Inverter Welder

£221.99 (£184.99 ex VAT)

In stock (can be backordered)

x

Product Description

Parweld XTS 163 230v 160A MMA Lift TIG Inverter Welder

LIMITED TIME OFFER, COMES WITH: –
WH-1 helmet
S3802 Rigger Gloves
Magmaweld ESR 11 6013 2.5mm/3.2mm 1KG Electrodes (11100HPEM2/ 11100NPEM2)

The XTS 163 MMA uses latest technology to provide a compact and reliable machine, ideal for everyday applications. Electrodes up to 3.2mm can be used with ease.

By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 163 can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.

The XTS 163 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a rugged steel case. A carry case is available as an optional extra.

Key Features Include:

230V Input
160A @ 25% Duty Cycle
Lift TIG Mode

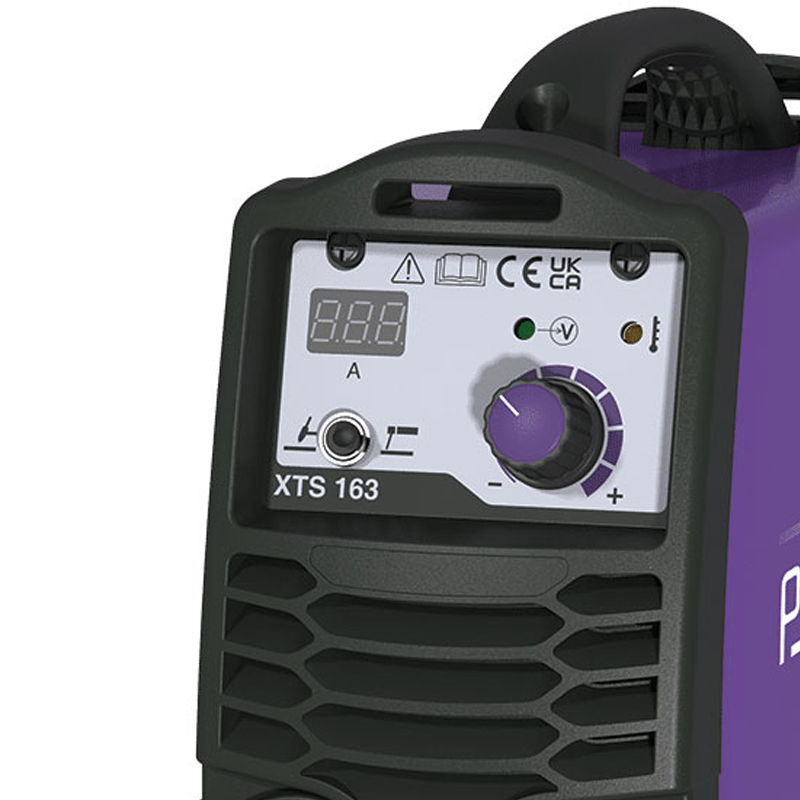

Digital Display (with Digital Amperage Display) for Easy Setting
Lightweight at just 4.7kg
Over Voltage Protection
Over Current Protection
Electrode Striking with Arc Force
Re-Striking with Hot Start
Connections 35-50mm Twist Lock

Need some more information? Click here to download the Manual.

#octoberdeals

Weight N/A
Dimensions N/A
Phase

Single Phase

Machine Style

Compact

Machine Type

Inverter

Maximum Current

5-160A DC

Duty Cycle

160A @ 25% Duty Cycle

Input Voltage

230V 1P

No Load Voltage

45V

Max Electrode Size

3.2mm

Input Current (Eff)

15.9A

Output

DC

Cable Connection

35-50 Dix

Minimum Fuse Rating

16A

KVA

4.5

Generator Size (Requires AVC)

6 KVA

Cooling

Air, Fan, Forced

Enclosure Protection

IP23S

Comes With

3m Cable, 3m Earth Lead, Electrode Holder

Ideal for Applications

Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Metal Fabrication, Training

Special Features

Arc Force, Digital Amperage Display, Electrode Striking, Lift TIG Mode, Lightweight, Over Voltage + Over Current Protection, Re-Striking, Re-Striking with Hot Start

Warranty

3 Year Service, 3 Year Warranty

Conforms To

IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
