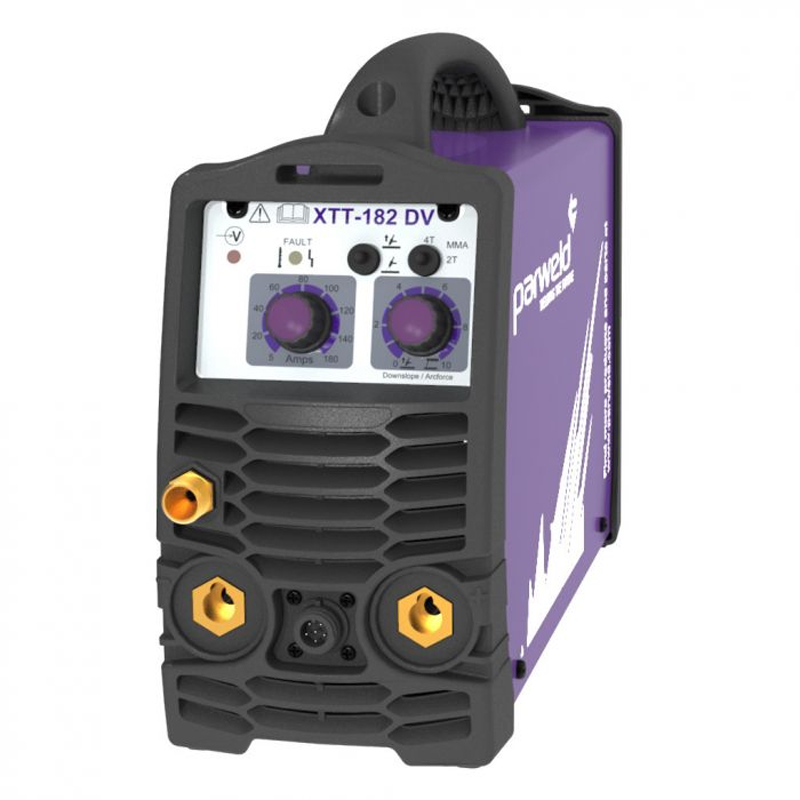

Parweld XTT182DV-P1 180a DC Tig Inverter Package Dual Voltage 110/230v

£495.00 ex VAT

Parweld XTT182DV-P1 180a DC Tig Inverter Package Dual Voltage 110/230v

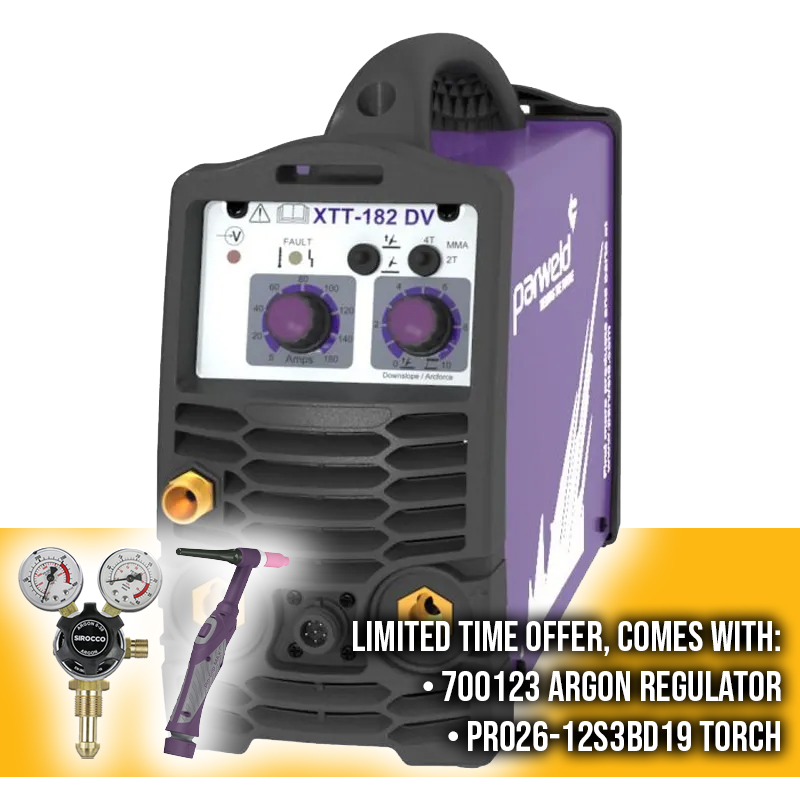

- LIMITED TIME OFFER, COMES WITH:
700123 Argon Regulator
PRO26-12S1BD19 Torch To Suit

The XTT 182DV can be used for TIG welding and is suitable for welding steel and stainless steel using the HF start circuit. The latching trigger function improves operator comfort allowing the trigger to be released during long welds.

The dual voltage XTT 182DV has a DC output and is suitable for welding alloy, non alloy steels, stainless steel and titanium. TIG Mode – Materials up to 5mm can be welded with ease. MMA Mode – Electrodes up to 4.8mm can be used with ease.

The XTT 182DV is able to cope with inputs which fluctuate by +/-15% and can be used with the majority of generators. The machine is housed in a metal case with integrated carry handle and shoulder strap. A carry case is available as an optional extra.

Key Features Include:

Dual Voltage 110V / 230V
180A @ 60% Duty Cycle
Site Welding Applications
HF Arc Start TIG
TIG Welds Steel and Stainless Steel of up to 4mm Thickness
Generator Friendly
Lightweight at just 7.8kg
Connections 35-50mm Twist Lock
Adjustable Post Flow (when in TIG Mode)
Latching Trigger Option (when in TIG Mode)
Adjustable Downslope (when in TIG Mode)
Easy Electrode Re-Striking with Hot Start (MMA)

Product Detail

Weight 7.8 kg
Dimensions 455 × 130 × 230 mm
Phase

Single Phase

Machine Style

Compact

Machine Type

Inverter

Maximum Current

10-180A DC

Duty Cycle

180A @ 60% Duty Cycle

Input Voltage

110V 1P, 230V 1P

Up Slope Function

Fixed

Down Slope Function

0-10s

Input Current (Eff)

17.5A, 21A

Output

DC

Pre-Flow Function

Fixed

Post-Flow Function

0-10s

Minimum Fuse Rating

16A, 32A

KVA

3.6

Generator Size (Requires AVC)

5 KVA

Cooling

Air, Fan, Forced

Enclosure Protection

IP23S

Comes With

3m Earth Cable, 3m Input Cable, Gas Hose

Ideal for Applications

Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Sheet Metal Fabrication, Site Work, Training

Special Features

Easy electrode re-striking with hot start (MMA), HF Arc Starting, TIG Mode

Warranty

3 Year Service, 3 Year Warranty

Conforms To

IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
