Parweld XTT212P-P1 AC/DC Pulsed 200A TIG Inverter Machine C/W Torch

£825.00 ex VAT

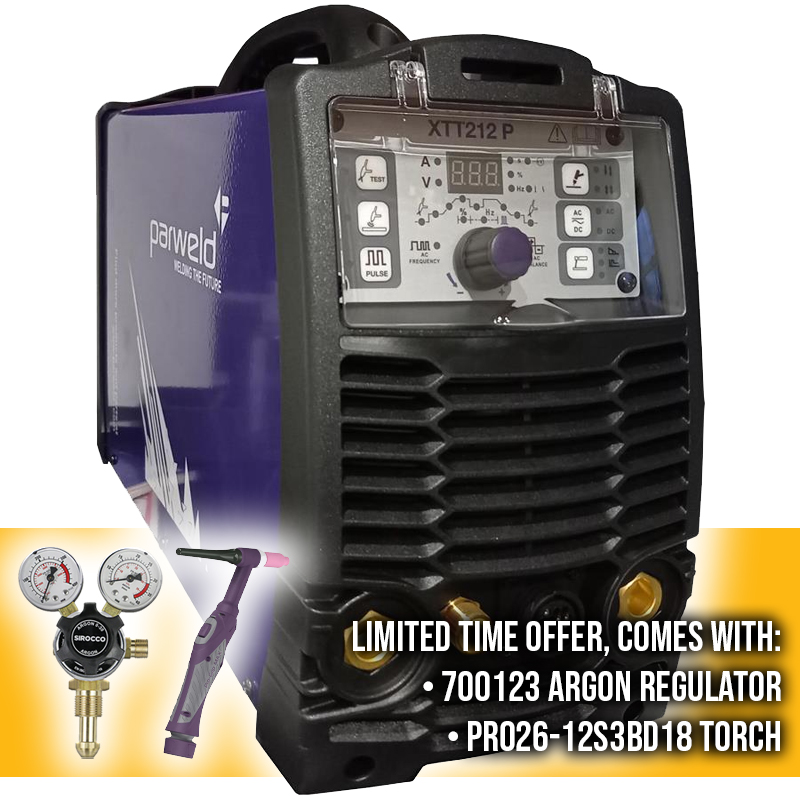

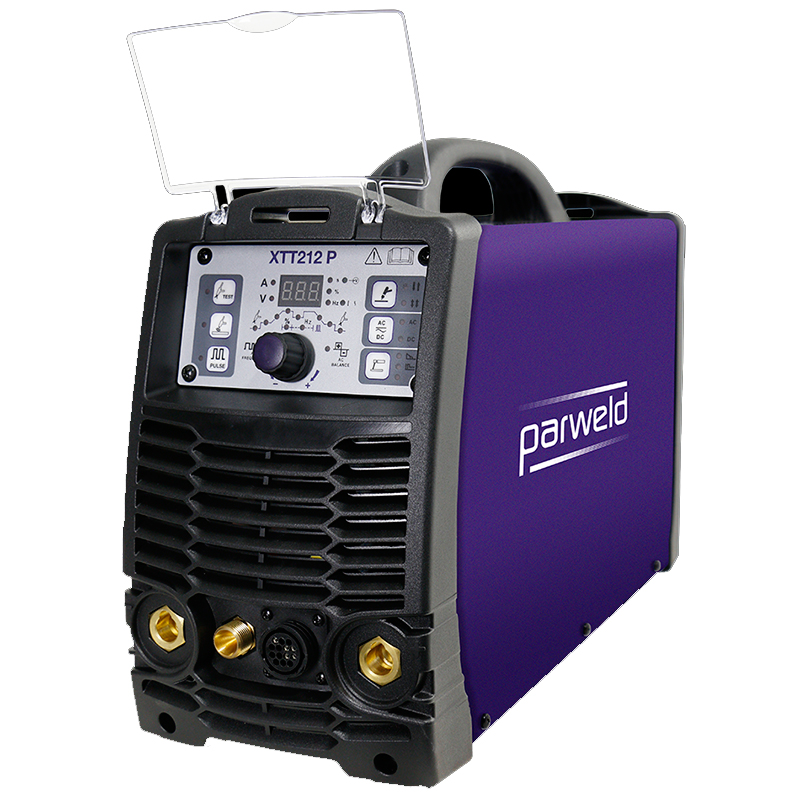

Parweld XTT212P-P1 AC/DC Pulsed 200A TIG Inverter Machine

- LIMITED TIME OFFER, COMES WITH:
700123 Argon Regulator
PRO26-12S3BD18 Torch To Suit

This dual voltage compact machine offers the user the benefits of a 230V workshop machine with the flexibility of 110V site machine.
Compared with the XTT202 AC/DC the XTT212 has a 40% smaller footprint but packs the same punch.
Simple intuitive one knob control allows for rapid program setting. The XTT212 machine works with digital and analogue on torch current controls and has foot control option.

Key Features Include:

Pulse Function To Superior Arc Control
Square Wave AC TIG
110V or 230V Input
TIG Welds Any Metal Up To 6mm
Reduced Footprint
Variable Frequency for Faster Welding

Product Detail

Weight 12 kg
Dimensions 460 × 170 × 320 mm
Phase

Single Phase

Machine Style

Compact

Machine Type

Inverter

Maximum Current

10-140A AC, 10-200A AC, 5-140A DC, 5-200A DC

Output Current for 230V

5-200A DC, 10-200A AC

Output Current for 110V

5-140A DC, 10-140A AC

Duty Cycle

140A @ 40% Duty Cycle, 200A @ 25% Duty Cycle

Input Voltage

110V 1P, 230V 1P

Input Current (Eff)

17.5A, 21A

Output

AC, DC

Pulse Frequency

0.5-200Hz

AC Frequency

50-250Hz

Minimum Fuse Rating

16A, 32A

KVA

3.6

Generator Size (Requires AVC)

5 KVA

Cooling

Air, Fan, Forced

Enclosure Protection

IP23S

Comes With

3m Earth Cable, 3m Input Cable, Gas Hose

Ideal for Applications

Aluminium Fabrication, Light Industrial Manufacturing, Sheet Metal Work, Stainless Steel Fabrication, Training

Special Features

Pulse Function to Superior Arc Control, TIG Mode, Variable Frequency for Faster Welding

Warranty

3 Year Service, 3 Year Warranty

Conforms To

IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant

#parweldoffer2023
